All last buy date: 2018/06/05
All last shipping date: 2019/06/28

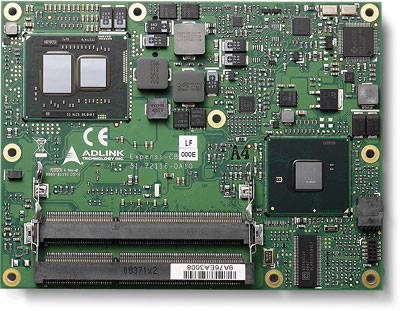

The Express-CB is a COM Express? Type 2 module supporting the 64-bit IntelR Core? i7 / i5 / i3 processor with CPU, memory controller, and graphics processor on the same chip. Based on the latest Mobile IntelR QM57 Express chipset, the Express-CB is specifically designed for customers who need high-level processing and graphics performance in a long product life solution. Integrated graphics support includes features such as OpenGL 2.1, DirectX10, and IntelR Dynamic Video Memory Technology (IntelR DVMT 5.0). Graphics outputs include CRT, LVDS and Embedded DisplayPort. The Express-CB is specifically designed for customers with high-performance processing graphics requirements who want to outsource the custom core logic of their systems for reduced development time.
The Express-CB has dual stacked SODIMM sockets for up to 8 GB DDR3 memory. The IntelR Mobile QM57 Express chipset integrates CRT and single/dual-channel 18/24-bit LVDS display output. In addition to the onboard integrated graphics, a multiplexed PCI ExpressR Graphics x16 (PEG x16) bus is available for discrete graphics expansion, Embedded DisplayPort, or general purpose x8, x4 or x1 PCI ExpressR connectivity. The Express-CB features a single onboard Gigabit Ethernet port, up to eight USB 2.0 ports and four SATA 3 Gb/s ports with optional support for RAID 0/1/5/10. Additional storage interfaces include an optional SATA based Solid State Disk (8/16/32 GB), and a single IDE (PATA) channel. Legacy support is also provided for 32-bit PCI, LPC, SMBus and I2C. The module is equipped with an AMI EFI BIOS with CMOS backup, supporting embedded features such as remote console, CMOS backup, hardware monitor, and watchdog timer.
