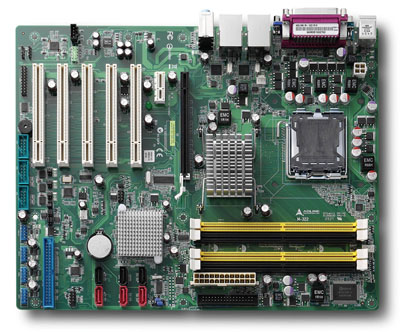

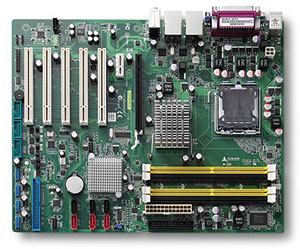

The ADLINK M-322 is an ATX industrial motherboard supporting
the next-generation Intel® Core?2 Quad/Duo, Pentium® Dual
Core and Celeron® processors in the LGA775 package to deliver
a high performance platform for a wide array of industrial applications.
The M-322 supports processing speeds up to 3.00GHz and
1333 MHz Front Side Bus (FSB). Dual channel DDR2
667/800 MHz memory is supported up to a maximum of 8GB in
four DIMM slots. The M-322 supports a broad range of processor
frequencies, high-speed data transfer rates, diverse I/O functions,
and high-bandwidth network connectivity.
These advanced features, coupled with integrated graphics, one
PCI Express® x16 slot, one PCI Express® x1 slot, five PCI slots,
and audio interfaces make the M-322 suitable for automation control,
medical, test & measurement, and telecom applications
requiring an easy-to-deploy and reliable mainboard.
