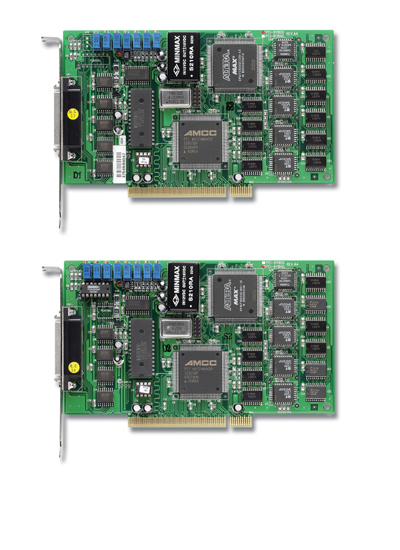

ADLINK PCI-9118 Series are high performance data
acquisition cards. The PCI-9118DG and PCI-
9118HG feature 12-bit resolution, with sampling rate
up to 333kS/s, while the PCI-9118HR, on the other
hand, features 16-bit resolution, with sampling rate
up to 100kS/s. The 256-location channel-gain
queues on PCI-9118 series cards allow high-speed
data acquisition with different gains on each channel
and non-sequential order of automatic analog input
scanning capability. The on-board 1k-sample A/D
FIFO ensures reliable high-speed data acquisition
under Windows operating system. The data can be
transferred through bus-mastering DMA with gapfree,
continuous high throughput, even for a large
amount of data.
ADLINK PCI-9118 series multi-function DAQ cards
deliver cost-effective and reliable data acquisition
capabilities, and are ideal for a broad variety of
applications.
