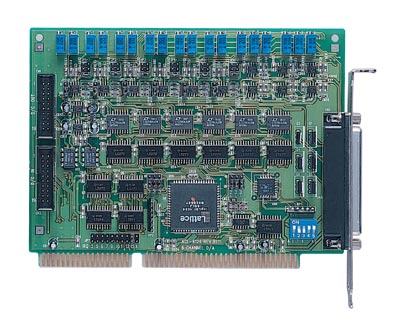

ADLINK ACL-6126 is a 6-CH, 12-bit analog output card. The voltage output function provides voltage outputs
in ranges of ??5 V, ??10 V, and accepts external voltage reference for multiplying analog output applications. The
current output function provides current loops in ranges of 4 to 20 mA, and accepts external power from 8 to 36 V.
In addition to the analog output functionalities, the ACL-6126 also features 16-CH TTL digital inputs and 16-CH
TTL digital outputs, and further expands the application coverage. ADLINK ACL-6126 delivers cost-effective
and reliable analog output functionalities for ATE, signal generation and other industrial control applications.
