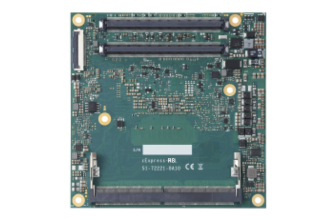

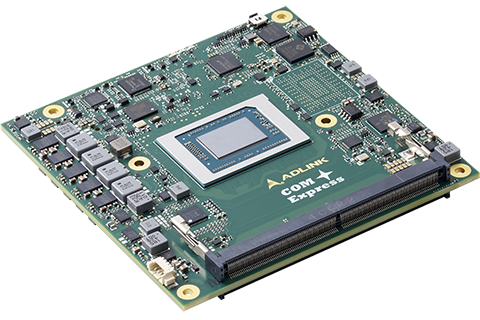

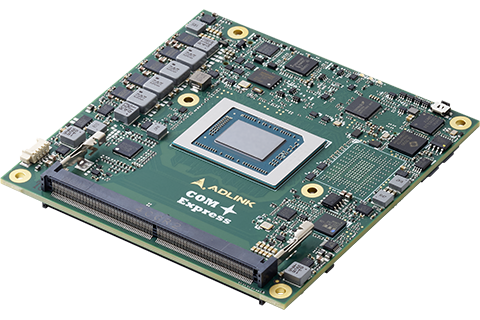

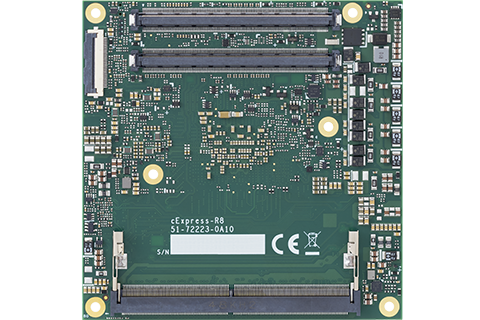

Unlock next-level industrial performance with the cExpress-R8, a COM Express® COM.0 R3.1 Type 6 Compact module powered by the AMD Ryzen™ Embedded 8000 series processors (8845HS, 8840U, 8645HS, 8640U). Featuring up to 8 “Zen 4” cores (16 threads), integrated AMD RDNA™ 3 graphics, XDNA™ NPU, and combined up to 39 TOPS performance, this module delivers power-efficient AI inferencing and fast decision-making at the industrial edge. The XDNA™ architecture enhances performance-per-watt, maintaining a similar power envelope to previous generations while enabling robust AI capabilities.
The cExpress-R8 supports up to 96GB dual-channel DDR5 at 5600 MT/s (with non-ECC/ECC options) for exceptional responsiveness and performance. It also powers up to four independent displays (DP, eDP, HDMI, LVDS, or VGA), making it ideal for advanced visual applications.
Designed for scalability, the cExpress-R8 offers flexible performance, power, and graphics options, perfectly suited for diverse edge applications. With 10 years of product availability, it ensures long-term support for your design lifecycles.
Specifications:
- AMD Ryzen™ Embedded 8000 Series Processor
- “Zen 4” architecture with up to 8 cores (16 threads)
- AMD RDNA™ 3 graphics
- AMD XDNA™ NPU
- Up to 96GB dual-channel DDR5 at 5600 MT/s non-ECC/ECC
- Up to 4 displays: DP, eDP, HDMI, LVDS, or VGA
- Up to 16x PCIe Gen4 lanes
- Up to 4x SATA 3.0, 1x 2.5GbE
- 4x USB 3.2, 4x USB 2.0, 2x UART, 4x GPIO
- Form factor: PICMG COM.0: Rev.3.1 Type 6 (95mm x 95mm)
- 8.5V to 20V wide voltage input
- Commercial operating temperature: 0°C to +60°C
- 10 years longevity
