cPCI-6870 is scheduled to be EOL on 2014/01/31; suggest replacements are cPCI-6530. Last shipment date: 2015/05/01)

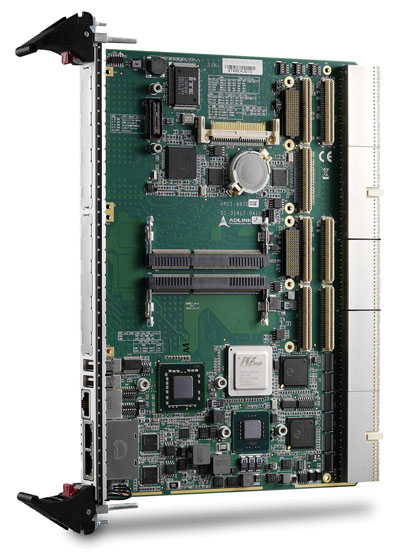

The cPCI-6870 Series is a 6U CompactPCI single board computer in single slot (4HP) width form factor featuring a low power, small form factor mobile IntelR chipset and supporting 45nm process CoreTM2 Duo and CeleronR processors. The cPCI-6870 provides up to 8GB dual channel DDR3-800/1066 memory capacity and implements the Mobile IntelR GS45 Graphics and Memory Con- troller Hub and ICH9M-SFF I/O Controller Hub to provide a full feature set and optimal performance.
The cPCI-6870 Series supports a 64bit/66MHz CompactPCI bus, two PMC sites with 64bit/66MHz PCI bus or two PCI-Express x8 XMC sites, four PCI-Express Gigabit Ethernet ports (two on front panel, two for PICMG 2.16), a SATA connector for an onboard 2.5" SATA HDD, and CompactFlash socket support via the Rear Transition Module (RTM). For flexibility of use, the cPCI-6870 Series can be installed in a standard CompactPCI system slot as system master, or peripheral slot as a PCI device. The cPCI-6870 Series is ideally suited for factory automation, transportation and military applications.
