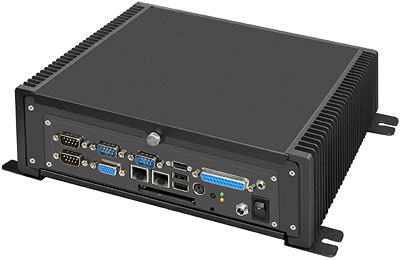

The ReadySystem? Fanless includes a robust set of I/O with a VGA DB15 output, USB 2.0 ports, RS232 Serial ports on DB9 connectors, Audio (In, Out, and Mic), PS/2 keyboard and mouse (shared), and up to two Ethernet interfaces. ReadySystem? Fanless allows the integration of up to 2x PC/104 cards.
This fanless system features the ReadyBoard? SBC, up to 1.4GHz Pentium® M processor, and compact housing for limited space embedded fanless applications.
Compact Size: ReadySystem? Fanless is 236x260x85mm (9.3x10.2x3.35") which qualifies it for space critical applications. The ReadySystem? Fanless is suitable for desktop, walls, or rack mount use.
Scalable Performance with Managed Power Consumption: Pentium® M class processors achieves high computing performance with low power consumption and allow fanless operation.
Range of Power Sources: The ReadySystem? Fanless is compatible with 12 to 24 V power modules, offering fl exible power options for various environments.
ADLINK? ReadySystem? Confi guration: ADLINK? ReadySystem? Fanless computers configurations include your choice of memory size, Hard Disk, and/or Compact Flash options. High Integration: ReadySystems are supplied "Ready to Run" with long life cycle support for product continuity.
