Intel® GPU Solutions for Embedded and Edge AI
Smarter AI. Scalable Graphics.
Industrial-grade Reliability.Industrial-grade Intel® Arc™ GPU modules and PEG cards designed for OEMs needing power-efficient AI and graphics at the edge—without the high cost of over-spec’d solutions.
Why Intel® GPU with ADLINK?
Up to 40% lower cost in comparison to NVIDIA solutions
Low-power MXM & PCIe options for fanless and space-constrained designs
Seamless integration with Intel® CPUs using Deep Link
Accelerated vision AI development with OpenVINO™ & OneAPI
Industrial-grade reliability & extended lifecycle for embedded applications
Global ADLINK support and customization for thermal, I/O, or form factor needs
Choose Your GPU Configuration

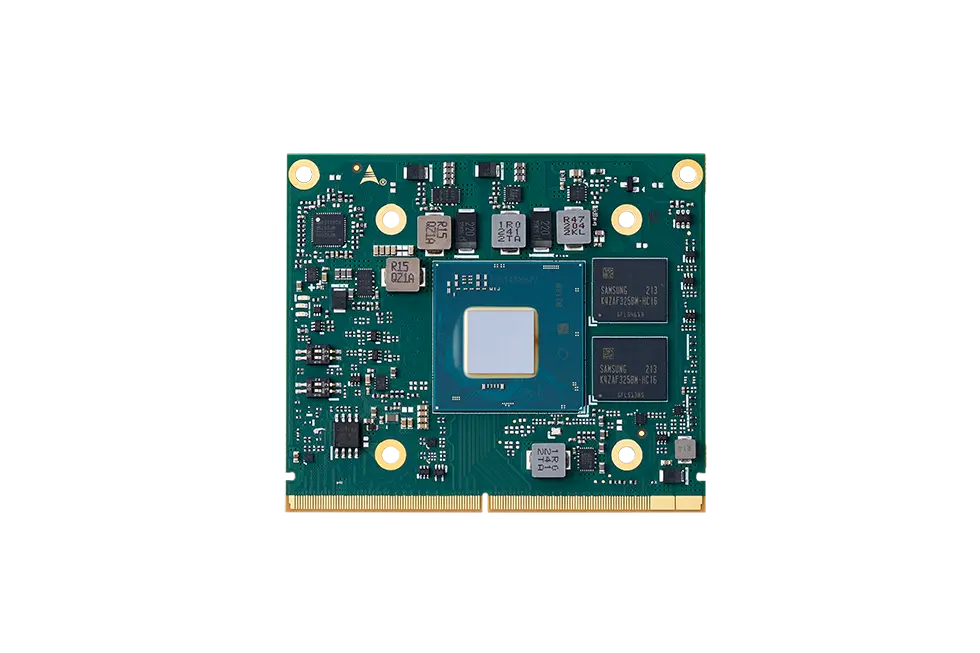

MXM GPU Modules – Compact, Fanless AI Acceleration
Embedded MXM GPU Modules - MXM 3.1 Type A
(codenamed Alchemist)

- 4GB GDDR6 @ 112 GB/s
- 6 Xe‑cores, 96 XMX, 6 RT
- 25 W TBP
- Supports 4x DP 2.0 or HDMI 2.1
- OpenVINO™, OneAPI, Deep Link
- Win 11 & Linux drivers (64-bit)
- Optimized for fanless embedded systems, ideal for medical, signage, gaming
(codenamed Alchemist)

- 4GB GDDR6 @ 112GB/s
- 8 Xe‑cores, 128 XMX, 8 RT cores
- 35W TBP
- Supports 4x DP 2.0 or HDMI 2.1
- Win 11 & Linux drivers (64-bit)
- OpenVINO™, OneAPI, Deep Link
- Ideal for vision AI, robotics, automation workloads

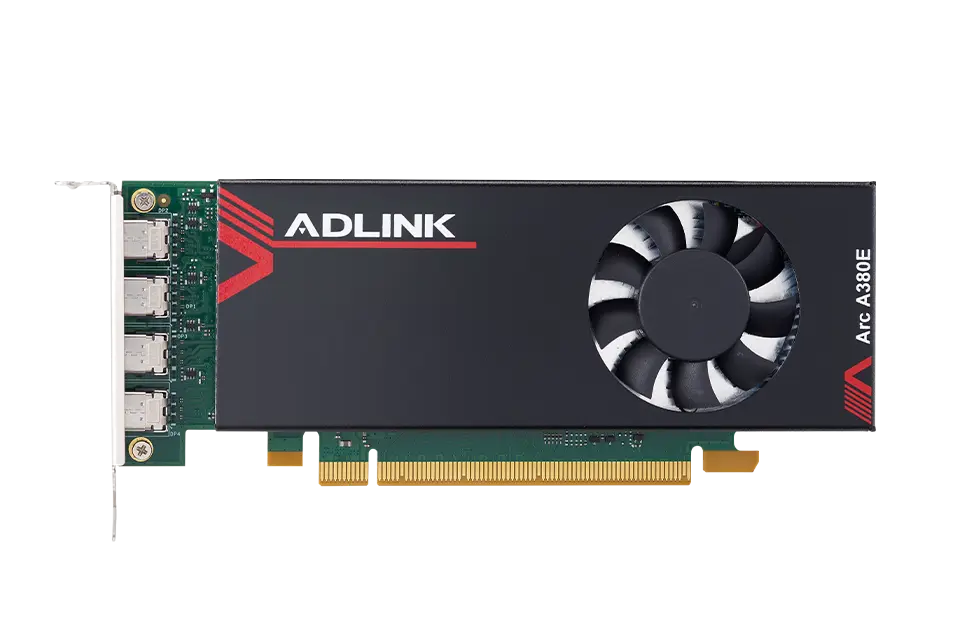

PEG Cards – Low-Profile PCIe Flexibility
PCI Express Graphics Cards (PEG)
(codenamed Alchemist)

- 6 GB GDDR6 VRAM @ 186 GB/s (96-bit)
- 8 Xe‑cores, 128 XMX engines
- PCIe Gen4 x8, 50 W TBP
- Support 4x mDP
- OpenVINO™, DirectX 12, Vulkan® 1.3, OpenGL® 4.6, and OpenCL™ 3.0,
- Win 11/ Linux drivers (64-bit)
- For embedded AI & media-rich systems

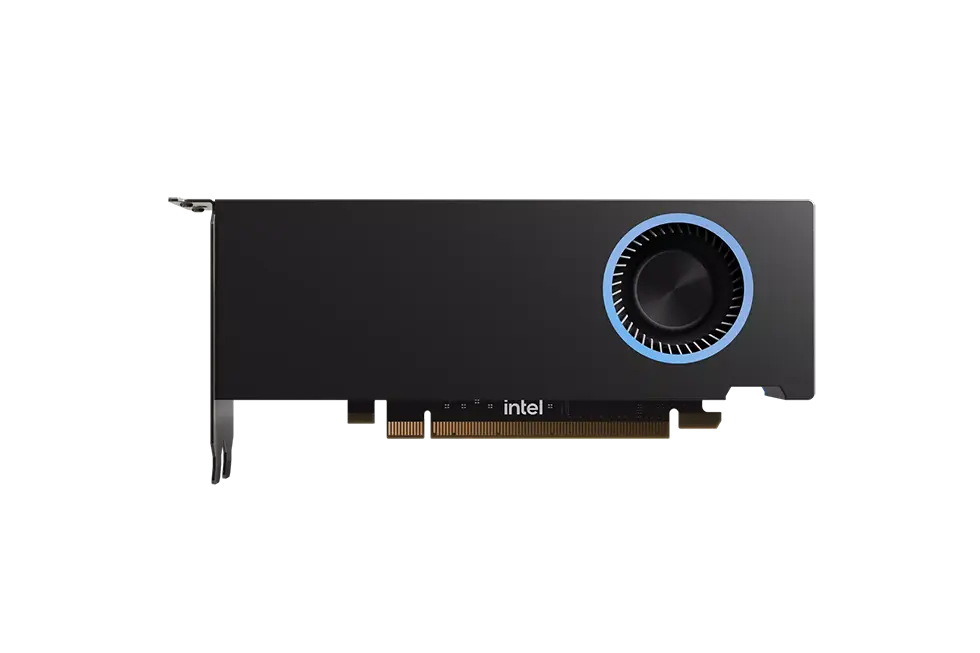

(codenamed Battlemage)

- 16 GB GDDR6 VRAM @ 224 GB/s (128 bit)
- 16 Xe‑cores, 128 XMX engines
- PCIe Gen5 x8, 70 W TBP
- Support 4x displays (DP2.1 up to UHBR 13.5)
- OpenVINO™, Vulkan, DirectX support
- Ideal for CAD, signage, control rooms
(codenamed Battlemage)

- 24 GB GDDR6 VRAM @ 456 GB/s (192-bit)
- 20 Xe cores, 160 XMX engines
- PCIe Gen5 x8; 120–200 W TBP
- Support 4 Displays (HDMI 2.1, DP2.1 up to UHBR 13.5
- OpenVINO™, Vulkan, DirectX, OneAPI; multi GPU support
- Suited for simulation & industrial design
Intel GPU-Enabled Medical Platforms – Integrated AI Performance

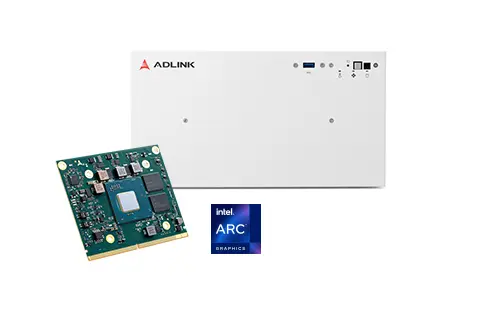

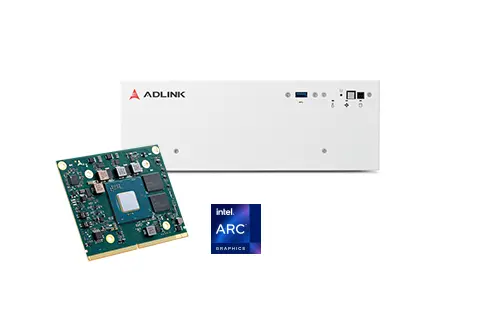

MXM GPU-Enabled Medical Platforms
Intel® Arc™ A-Series Graphics (codenamed Alchemist)
with PCIe Expansion

- Medical Box PC featuring the 12th /13th /14th Gen Intel® Core™ i3/i5/i7/i9 processors, with support for MXM-AXe based on Intel® Arc™ GPU.
- 2x PCIe Gen3x4 expansion slots for full-height, half-length add-on card.
- Perfect for medical imaging and Vision AI.
(No Expansion Slots)

- Medical Box PC featuring the 12th Gen Intel® Core™ i3/i5/i7/i9 processors, with support for MXM-AXe based on Intel® Arc™ GPU.
- Perfect for AI-inference diagnostics and analytics.
What Engineering Benchmarks Show
— Internal Technical Benchmark Summary, 2024
