Visualizing Your
Smart Applications
Designed-for-varied-vertical HMI Solutions
ADLINK offers comprehensive HMI (Human Machine Interface) solutions for versatile monitoring, control, and operation applications across various verticals. In addition to various-sized industrial touch monitors and panel PCs, ADLINK’s HMI solutions are also renowned for their high-quality AUO panels, customization services, and durable and intuitive designs. Numerous field site applications are approved worldwide in verticals such as manufacturing, energy, medical, transportation, retail, and hospitality.
Quality Panel from AUO Display Plus
With a strong partnership with AUO, ADLINK’s HMI solutions are all built on panels directly from AUO Display Plus. This doesn't only benefit on cost reduction but also ensures industrial-grade quality and faster time-to-market for customers.
Customization Services
To fulfill every customer’s unique applications, ADLINK listens and offers customization services to meet all the requirements. Touch solutions, optical enhancements, mechanical design, scalers, and firmware are all customizable.
Reliable & Intuitive Designs
With more than 28 years of experience in providing industrial-grade solutions, ADLINK aims to provide various options for solid metal chassis as well as IP65 and IP69 protection rating options. To speed up HMI development, ADLINK also offers integrated software for HMI vector graphic customization.
Reliable HMI Expertise
Visualization Software
Technology Partners
Comprehensive HMI Solutions
Industrial Touch Monitor
OM & IM Series
Ranging from 7” to 43”, ADLINK offers comprehensive open frame monitors (OM Series) and true flat monitors (IM Series). Featuring a 10-point PCAP touchscreen, anti-fingerprint surface treatment, wide viewing angles, IP65-rated protection, and one-stop value-added customization, the OM Series and IM Series can fulfill all kinds of industrial display demands.
All-in-One Panel PC
STC2 Series
Tailored for constrained spaces with limited working area, the STC2 Series presents a simple plug-in and standalone design enabling versatile data display and multitasking at the operational edge. Featuring wide voltage and temperature ranges and an IP65-rated front panel, the STC2 Series is durable and reliable fitting industrial environments.
Open Frame Touch Panel PC
SP2 Series
Specifically crafted for embedded computing, the SP2 Series boasts a ready-to-use design complemented by flexible function modules for seamless expansions. It enables system integrators to quickly build cutting-edge applications with unique functions for various verticals.
Industrial HMI Panel PC
PanKonix Series
The PanKonix Series industrial HMI panel PC enables smooth communication with PLC systems and features easy-to-use HMI software for efficient data visualization. It offers cloud connectivity through supported protocols such as OPC UA, MQTT, and Restful API, bridging the gap between operational technology (OT) and information technology (IT).

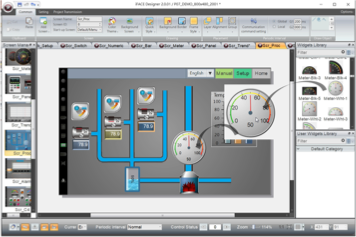

Intuitive HMI Software
Customizable Visualization for Various Applications
- Vector graphics facilitate
- 100+ graphics included & external image import
- Quick configuration with bulk tag name setup

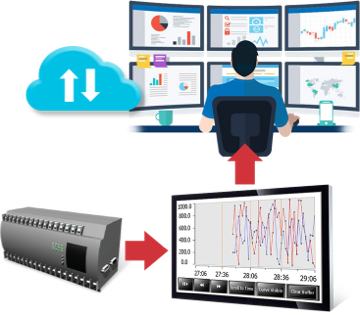

Easy Analytics and Rich Connectivity
- Trend chart, operation logging, alarms and recipe management
- Supports Modbus, CANopen for mainstream PLC data monitoring
- Supports RESTful API, MQTT, OPC UA for IoT applications
HMI Use Cases in Verticals
Open Frame Monitor

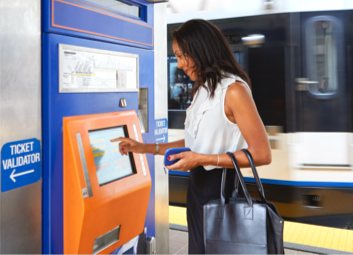

Ticketing Kiosk for Public Transportation
A public transportation solution provider integrated OM-150 and OM-190 open-frame industrial touch monitors into self-service kiosks at train stations. ADLINK’s OM Series features a 4:3 ratio for easy integration and an IP65 rating to withstand rain and dust in semi-outdoor environments. Also, ADLINK had customized the voltage input to 24V DC to integrate with the system seamlessly.
True Flat Touch Monitor

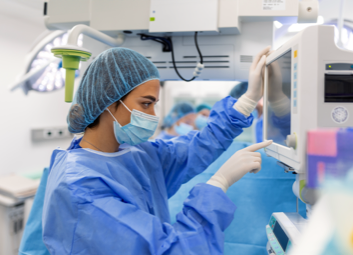

Nursing Information Display in Hospitals
The high-brightness version of the IM-215H true flat industrial touch monitor is widely deployed in nursing institutions. With clear screen visibility, sound notification, and glove touch support through PCAP 10-point multi-touch technology, ADLINK's IM Series touch monitors ease nurses' daily operations and ensure on-point healthcare for patients..
Open Frame Panel PC

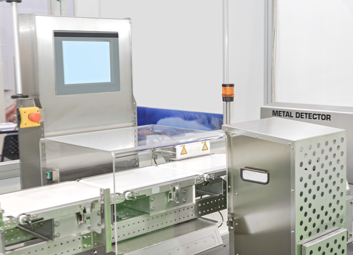

Checkweigher for Food and Beverage Industry
ADLINK's SP2 Series open frame panel is integrated into weight-checking machines for the food and beverage industry. With its full-screen sizes, function module design, and customized IP69K polyurethane sealing, the panel-oriented design effectively simplifies the maintenance of checkweighers while ensuring minimal disruption to the production process.
Industrial HMI Panel PC

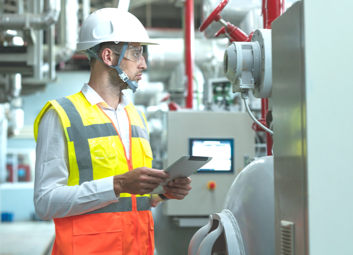

Data Visualization for Oil, Gas, and Water Treatment Industries
With the support of Modbus for PLC and I/O data transmission, ADLINK's PanKonix Industrial HMI Panel PC enables easy data visualization in the oil, gas, and water treatment industries. Along with HMI software harnessing over 100 vector graphics, trend charts, logs, and alarms, the solution speeds up application development and is easily integrated with MES/ERP systems via MQTT, RESTful API, and OPC UA.
