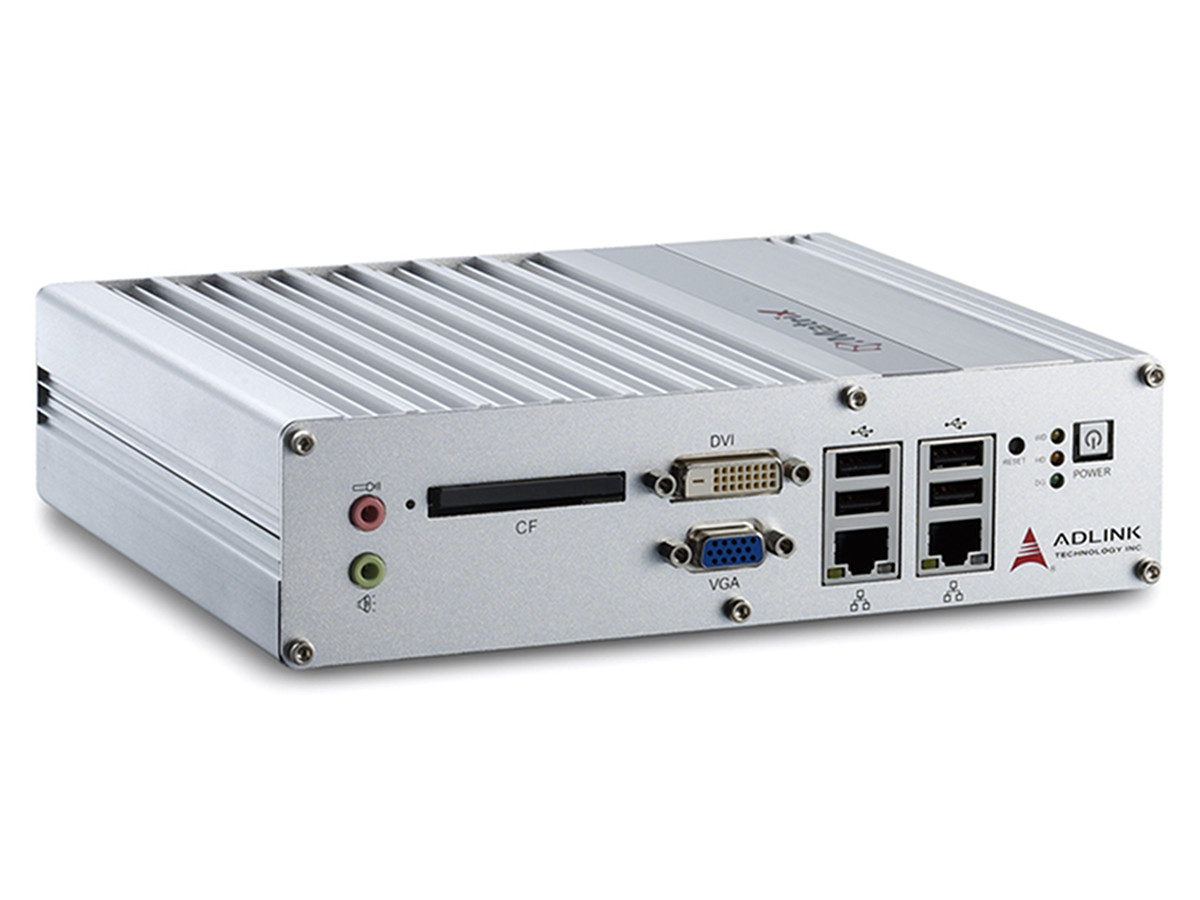

The Matrix MXE-1300 is the latest addition to ADLINK's Matrix line of embedded computers. Based on the Intel® Atom? D2550/N2600 processor, the MXE-1300 provides excellent computing performance and outstanding power conservation.
Three Intel® Gigabit Ethernet ports provide abundant support for a variety of internet/ intranet applications, and four digital I/O ports maximize flexibility for inter-device communication. An internal PCI Express Mini Card socket and USIM slot support extension functions, such as wireless connection (3G/WiFi/BT/GPS), video capture, Secure Access Modules (SAM), and others.
With its ruggedized architecture and rich I/O, the MXE-1300 is the best choice for industrial automation/ intelligent transportation systems, facility management, and applications demanding reliability in harsh environments. In addition, the MXE-1300 can meet the needs of digital surveillance with a supporting 3.5 inch HDD.
3.5" HDD Support in a Compact Form
The ADLINK MXE-1300 series adapts a 3.5" standard height hard disk drive to a 210 mm (W) x 170 mm (D) x 58 mm (H) containment, providing the most compact fanless system supporting 3.5¡¨ storage capability, significantly reducing storage costs and physical space requirements for high-resolution image processing and transmission applications.
Rich I/O Capability

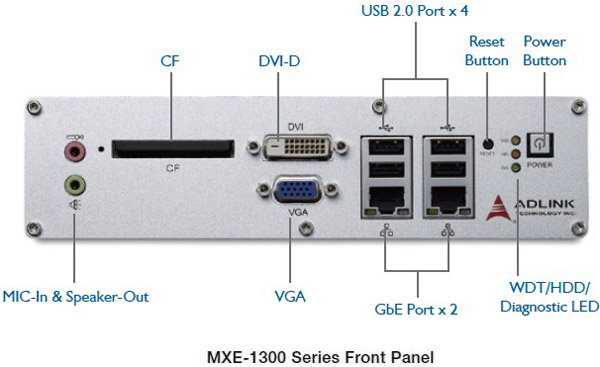

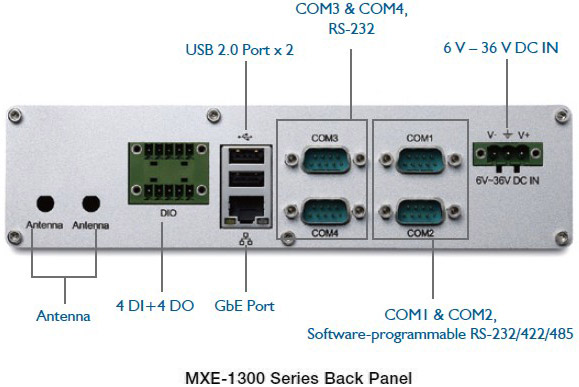

The ADLINK MXE-1300 supports rich I/O interfaces, including six USB ports, 4 serial ports, 4 digital I/Os, 3 Gigabit Ethernet ports, and one each Mini-PCIe and USIM slots for wireless operation. The MXE-1300 accommodates three Intel® 82574 GbE LAN controllers for top performance and a multitude of features supporting diverse internet/intranet applications. In addition, the MXE-1300¡¦s four built-in digital inputs and outputs allow the most intuitive inter-device communication implementation anywhere.
Rugged Design
Featuring operating shock tolerance up to 100 G, an extended market-leading operating temperature range of -20¢XC to 70¢XC, and unique thermal design with zero cable management requirements, the MXE-1300 provides reliable performance in mission-critical and harsh environments.
Software Support
The MXE-1300 also supports multiple OS, including Windows 7, Windows 7 Embedded, Windows XP, Windows XP Embedded, WinCE 7.0, and Linux.
