The MI-220 is scheduled to EOL.
Last buy Date:2019/06/30
Last shipment Date:2019/09/30

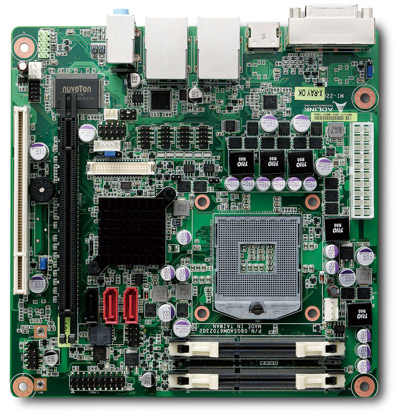

The ADLINK MI-220 is a Mini-ITX Embedded Board based on the IntelR Core? i7/i5/i3 Processor built on 32-nm process technology in rPGA988B package and the Mobile IntelR QM67 Express Chipset.
The MI-220 is ideal for embedded applications
requiring low power consumption in a standard small form factor
motherboard with a complete set of I/O functions and high-bandwidth
network connectivity. These features, combined with two
SO-DIMM sockets supporting DDR3 1066/1333MHz SDRAM up
to 8 GB, SATA 6 Gb/s ports, PCIe x16, PCI, and Mini PCIe expansion
slots, HDMI, DVI-D, VGA, dual-channel 24-bit LVDS, and
audio interfaces make the MI-220 suitable for medical, transportation,
industrial automation, and other applications requiring a low
noise/power, space-saving, multiple display platform.
