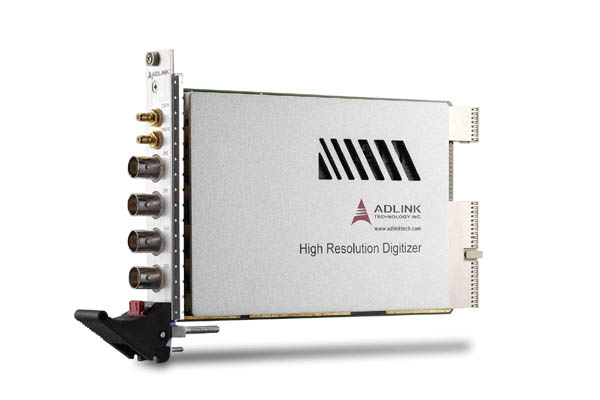

The ADLINK PXI-9826 is 20 MS/s sampling 16-bit 4-CH digitizers designed for digitizing high frequency and wide dynamic range signals with an input frequency up to 20 MHz. The analog input range can be programmed via software to ??1 V or ??0.2 V. With a deep onboard acquisition memory up to 512 MB, the PXI-9826 is not limited by the data transfer rate of the PCI bus to enable the recording of waveforms for extended periods of time.
The PXI-9826 is equipped with four high linearity 16-bit A/D converters ideal for demanding applications with a high dynamic range such as radar, ultrasound, and software-defined radio.
