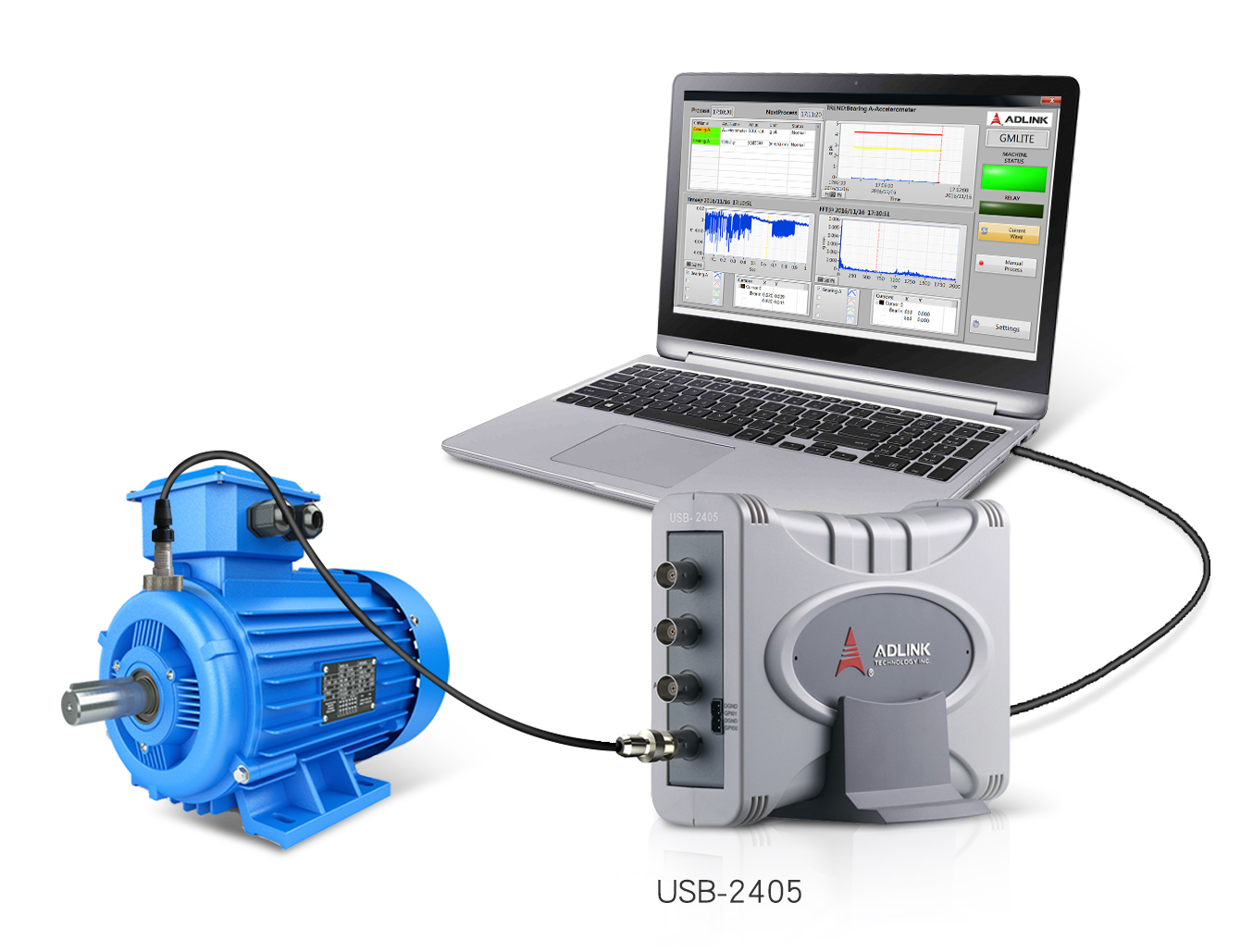

All-in-one starter kit provides cost-effective solution for 24/7 online monitoring and failure prediction.Quick attachment of accelerometer to the rotary device with integral magnetic mount means no adapter or additional fastening is required.
Integral Accelerometer Mounting Magnet
The Accelerometer included in the ADLINK Starter Kit, provides
frequencies from 0.5 to 10kHz and a maximum amplitude of
50G. Perfect for rotating machinery condition monitoring,
the accelerometer attaches magnetically, allowing easy
adjustment of location to any test point, avoiding costs and
effort of non-returnable tapping meters.
Start Projects Anywhere
ADLINK USB-2405 4-CH 24-Bit DSA Module is intuitive and easy to use for microphone
and accelerometer measurement in vibration and acoustic applications with compelling
features including built-in IEPE 2mA excitation current source on each channel without
additional signal conditioning, and anti-aliasing filters enable cutoff frequency to be
automatically adjusted to the sampling rate, suppressing out-of-band noise. In addition,
the USB-2405's USB bus power makes it perfect for portable field measurement when
used with laptop.
>
Efficient, Easy, Machine Condition Monitoring Application
Phoenix GM Lite Software monitors and analyzes rotating machinery,
calculating different overall (OA) bandwidths and condition data and
generating alerts when predefined alarm and condition parameters are
exceeded. Threshold settings can be user-defined or by default with
ISO 10816 machinery vibration standards.
Phoenix GM Lite Rotary Machine Condition Monitoring Application
- 4CH simultaneous sampling at pre-defined intervals (min. 60 seconds)
- Automatic OA (overall) calculation of displacement, velocity, and acceleration
- Real-time display of acceleration waveform and FFT
- Threshold settings for conditions user-defined or by default with ISO 10816 machinery vibration standards
- Trend display and report generation
- Efficient raw data storage:
Below alarm level: recording OA only
Exceeding alarm level: recording raw data for further analysis
System Requirements
- MicrosoftR WindowsR 7, Server 2012R, Windows 8R,Windows 8.1R and above
- MicrosoftR OfficeR 2010 and above
- IntelR PentiumR 4 or 933 MHz CPU and above
- RAM 512MB and above
- Mouse
- USB port
