The ADLINK PXIS-2719 is a 3U PXI chassis with a series of advanced features:
An innovative cooling mechanism to deliver efficient and uniform heat dissipation
Superior stability within an extended temperature range
Intelligent chassis management that dynamically monitors and manages fan speed, system voltages, and internal temperature
Remote management via standard RS-232 monitoring port

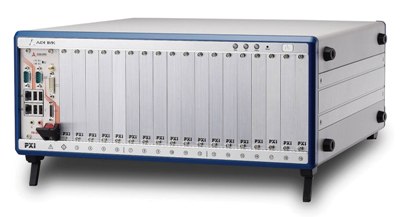

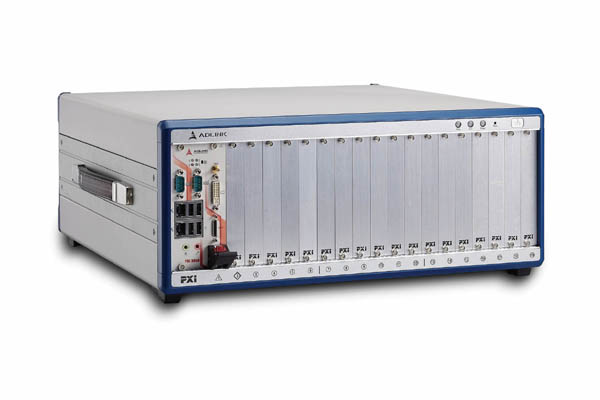

The PXIS-2719 is compliant with PXI and CompactPCI specifications and provides one system slot and eighteen peripheral slots. It is designed to meet or exceed application requirements by providing a large slot capacity, extended operating temperature range, and excellent heat dissipation in a lightweight and robust design.

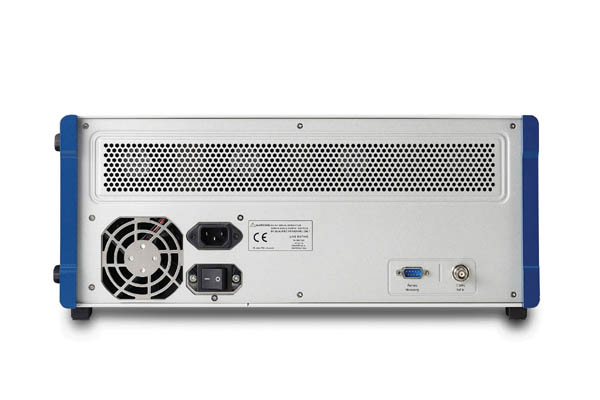

The PXIS-2719 includes an Industrial-grade 700 W AC power supply to provide ample reliable power to the entire
system. The PXIS-2719 is designed with an external 10 MHz reference clock input, front panel LED indicators, and easyaccess
PXI/CompactPCI slots with card guides for convenient installation and use. With innovative features and robust
design, the PXIS-2719 is your best choices of PXI platform for all your test and measurement requirements.
Innovative Cooling Mechanism
