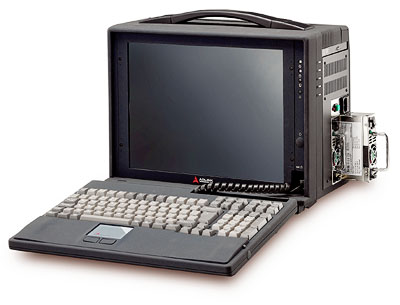

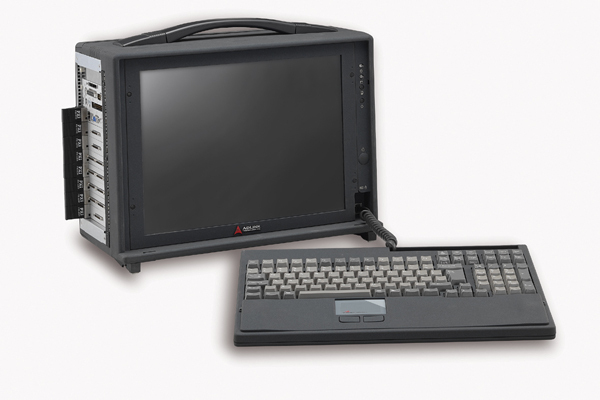

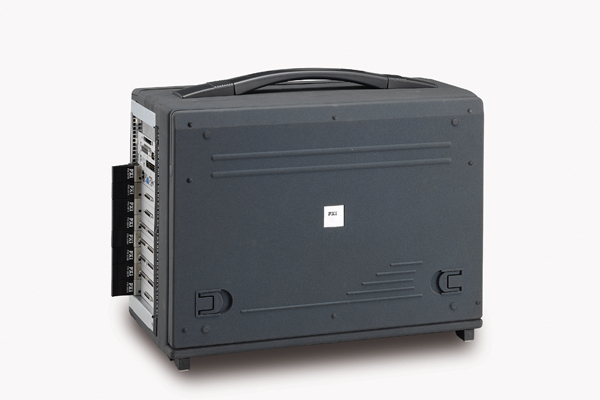

ADLINK PXIS-2680P is a 3U portable PXI chassis offering one system slot and seven PXI/CompactPCI peripheral slots. It provides multiple input devices, like an integrated keyboard, a touch pad, and the touch panel LCD. The PXIS-2680P also implements complete PXI functionalities, including PXI trigger bus, start trigger, PXI local bus, and 10MHz reference clock. Synchronous operation between modules is achievable by applying these PXI designs.
The PXIS-2680P includes a 15?? SVGA LCD touch screen. No external LCD, touch panel, or keyboard wiring is required when using the ADLINK PXI-3800 or PXD-3710/3710F system controller as all necessary wiring has been integrated into the design of the PXIS-2680P. A pair of 300W+300W redundant power modules is equipped with the chassis, making the PXIS-2680P ideal for critical applications. Combining all the advanced designs, the PXIS-2680P is capable of a wide range of applications, such as power industry, military, and telecommunication application.
