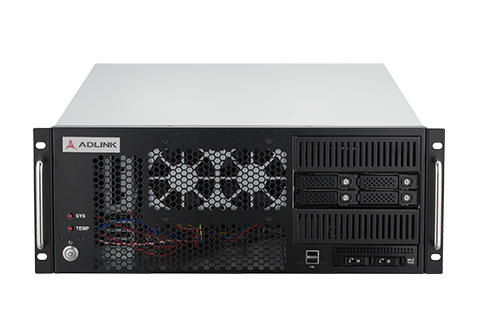

The ADLINK AXE-7420GWA is a 4U short-depth industrial server powered by
workstation-class Intel® Xeon® 600 processors with up to 350W TDP.
Designed for space-constrained industrial backend environments, its 550mm compact chassis
maximizes rack efficiency while offering a 12-slot expansion design to consolidate complex
automation workloads and server-grade AI capabilities into existing infrastructure.
Key Value Propositions
- Compact Rack Efficiency: Features a 550mm short-depth 4U chassis, ideal for deployment in standard industrial cabinets and space-limited factory environments.
- Extensive I/O Flexibility: Offers a 12-slot expansion layout, including 3x PCIe x16 and multiple x8/x4 slots via MCIO, supporting diverse automation and GPU acceleration requirements.
- Industrial Storage & Power: Supports up to 8x 2.5"/3.5" SATA HDD bays and industrial-grade ATX power supplies, ensuring reliable data handling and stable power delivery for mission-critical operations.
*Actual PCIe lane configuration and GPU support depend on the installed Intel® Xeon® CPU SKU and MCIO configuration.
| Processor Number |
Cores/ Threads |
Intel® Smart Cache LLC |
Base / Max Turbo Frequency |
PCIe Lanes |
Notes |
| Intel® Xeon® 698X |
86 / 172 |
336 |
2.0 / 4.6 |
128 |
Extreme high-end for massive virtualization or complex, multi-model workloads |
| Intel® Xeon® 696X |
64 / 128 |
336 |
2.4 / 4.6 |
128 |
High core density for data center-grade edge nodes |
| Intel® Xeon® 678X |
48 / 96 |
192 |
2.4 / 4.7 |
128 |
High-performance AI inference & heavy multitasking |
| Intel® Xeon® 656 |
20 / 40 |
72 |
2.9 / 4.6 |
128 |
Enough cores for automation |
| Intel® Xeon® 654 |
18 / 36 |
72 |
3.1 / 4.6 |
128 |
| Intel® Xeon® 636 |
12 / 24 |
48 |
3.5 / 4.5 |
80 |
Suitable for budget Edge Servers needing minimal high-end GPUs |
| Intel® Xeon® 634 |
12 / 24 |
48 |
2.7 / 4.4 |
80 |
*PCIe lane configuration depends on the installed Intel® Xeon® CPU SKU.
