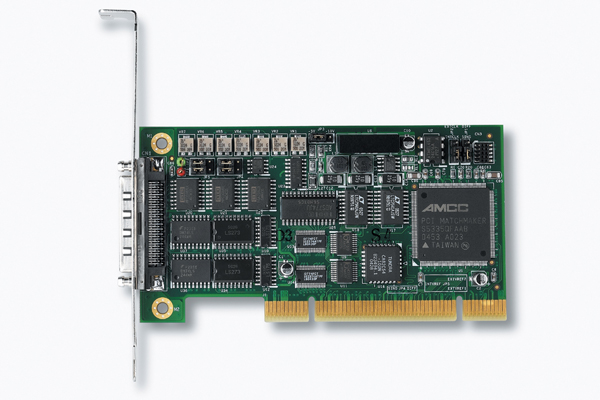

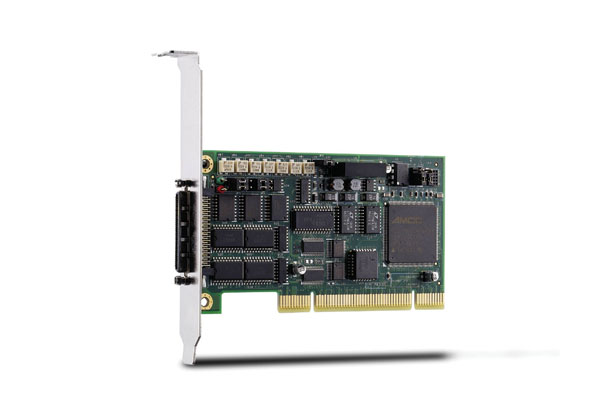

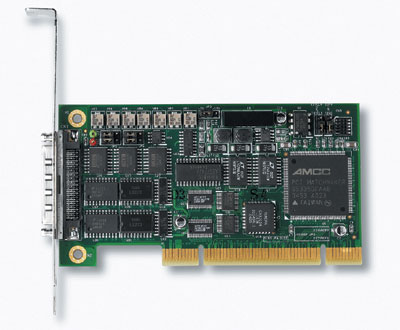

ADLINK LPCI-9112 is a 16-CH, 12-bit, 110kS/s Low-Profile DAQ Card. The Low-Profile form factor is ideal for the users who have the space-restriction on the peripheral cards. LPCI-9112 provides 16-CH single-ended modes or 8-CH differential mode for noise elimination and features flexible configurations on analog inputs. It provides analog inputs with 4 programmable input ranges for both bipolar and unipolar inputs. The A/D on the LPCI-9112 device features a sampling rate up to 110kS/s with 12-bit resolution.
The LPCI-9112 also features 2-CH 12-bit analog outputs, 1-CH 16-bit general purpose timer/counter, 16-CH TTL digital inputs and 16-CH TTL digital outputs. ADLINK LPCI-9112 delivers cost-effective and reliable data acquisition capabilities, and is ideal for Industry Automation applications.
