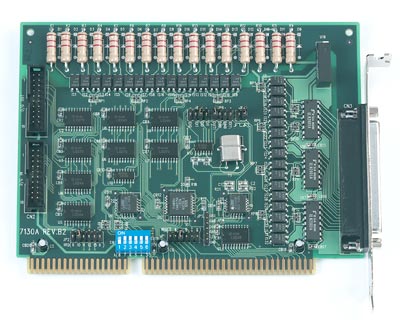

ADLINK ACL-7130 is an isolated digital I/O card. The card provides 16 isolated digital inputs and 16 isolated
digital outputs. The isolated channels are suitable for applications in the industry environment. There are
another 16 TTL digital inputs and outputs. The TTL inputs and outputs bring flexible functionalities in the ACL-
7130. The device also features dual interrupt lines. One is generated by the external digital signals and the
other is generated from the 8254 timer, which can be used in watchdog and trigger signal monitoring
applications. In addition to the digital I/O functions, the ACL-7130 device provides one general-purpose 16-bit
counter.
