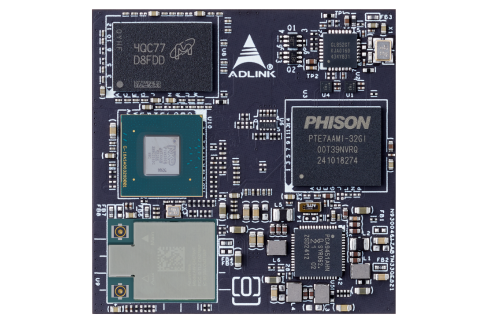

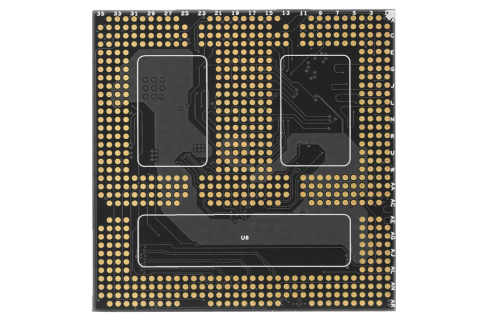

Gateway to Next-Level Compact Embedded Solutions ADLINK OSM-IMX95, based on the powerful NXP i.MX95 (6x Arm Cortex-A55 + 1x Arm Cortex-M7 + 1x Arm Cortex-M33) processor with an integrated ISP and eIQ Neutron Neural Processing Unit (NPU) operating at up to 2 TOPS., is the latest OSM revision 1.2 compliant tiny module (L-Size at 45mm x 45mm). It combines power-efficient high-performance compute, immersive Arm® Mali™-powered 3D graphics, innovative NXP NPU accelerator for machine learning, and high-speed data processing with safety and security features.
The OSM-IMX95 is suited for next generation IoT and industrial applications such as smart home, building, city, medical and industry 4.0.
Specifications: -
NXP i.MX 95 SoC with 6x Arm Cortex-A55
-
1x Arm Cortex-M7 and 1x Arm Cortex-M33
-
Integrated eIQ Neutron NPU, ISP and VPU
-
Arm Mali G310 3D Graphics
-
Up to 8GB LPDDR4L, up to 256GB eMMC
-
16x PCIe Gen5, 8x PCIe Gen4 lanes, 14x PCIe Gen3 lanes
-
DSI and LVDS graphic output interfaces
-
1x PCIe Gen3, 4x UART, 3x SPI, 2x I2S, 3x I2C, 12x GPIO
-
16x PCIe Gen5, 8x PCIe Gen4 lanes, 14x PCIe Gen3 lanes
-
USB3.0 /2.0 interfaces, Dual GbE with TSN
-
OSM revision 1.2 compliant, L-Size 45mm x45mm
-
15 years product availability
