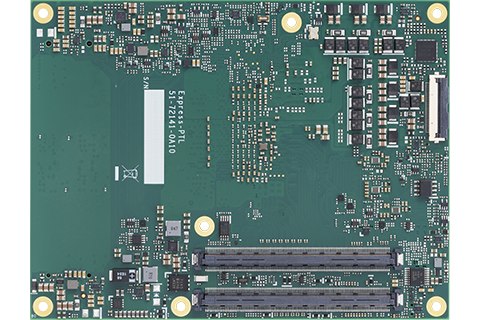

New Heights in Edge AI: Significantly Faster NPU and GPU Performance The ADLINK Express-PTL is a next-generation COM Express® Type 6 computer-on-module built on Intel® Core™ Ultra Series 3 (Panther Lake-H) processors, delivering a major leap in performance for edge AI and advanced embedded systems. Featuring a powerful hybrid CPU architecture with P, E, and low-power LPE cores, the module pairs
up to 128 GB DDR5 memory with IBECC support for high reliability and efficiency. Express-PTL integrates a next-generation Intel® Arc™ Xe3 GPU with up to 1.5x graphics performance improvement and an NPU
providing combined up to 180 TOPS, enabling fast, efficient AI inference, computer vision, and graphics-intensive workloads—all within a compact, standards-based COM Express form factor.
Designed for versatility and rugged deployment, Express-PTL supports a rich set of high-speed I/O, including PCIe Gen4, multiple display options, USB4/Thunderbolt capability (build option), and industrial features such as TSN Ethernet, TPM 2.0, and advanced power management. Selected SKUs operate across an extended
–40° C to 85° C temperature range, making the module ideal for mission-critical applications in robotics, industrial automation, medical imaging, transportation, and smart infrastructure. With its balance of AI acceleration, graphics performance, and long-term embedded reliability, Express-PTL provides a future-ready foundation for scalable edge computing designs.
Specifications: -
Intel® Core™ Ultra Processor Series 3 (Panther Lake-H) at 15-65W TDP
-
PICMG COM Express R3.1 compliant, Basic Size module (125mm x 95mm)
-
Intel® Arc™ Xe3 Graphics up to 120 TOPS, Intel® NPU 5.0 up to 50 TOPS
-
Up to 128GB (2x 64GB) DDR5 SO-DIMM memory support, up to 7200MHz, IBECC (selected SKUs)
-
USB4, DP, HDMI, DVI, VGA, LVDS, eDP (build option) display options
-
Industrial temperature support: -40°C to +85°C (selected SKUs)
-
10 years product availability
