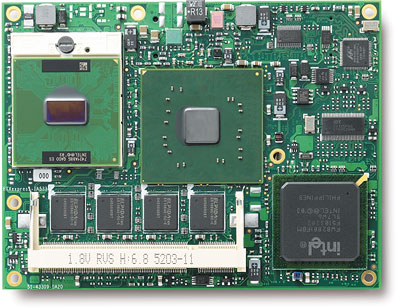

The Express-IA533 is based on the Intel® 915GME and ICH6-M Soutbridge with Enhanced Intel® Speedstep support. It can support Intel Celeron® M and Pentium® M CPU's in the range of 1 GHz to 2.1 GHz at FSB400/533.
The module comes with a single onboard Gigabit Ethernet port and two SATA channels. It has legacy support for Parallel ATA, 32-bit PCI and ISA through LPC. The Express-IA533 comes equipped with many embedded features such as: Remote Console, CMOS backup in EEPROM, CPU and System monitoring and a Dual Watchdog timer for NMI or RESET.
The Express-IA533 supports dual channel DDR2 533MHz memory, one bank soldered and one bank on SODIMM. The 915GM GCMH has integrated graphics support for CRT and single/dual channel LVDS. In addition to the onboard integrated graphics, a PCI Express x16 slot is available for conection to high-end PCI Express x16 Graphics chipsets.
