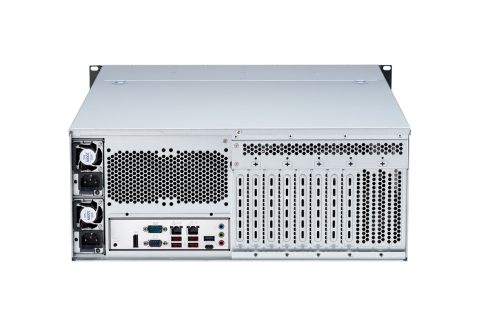

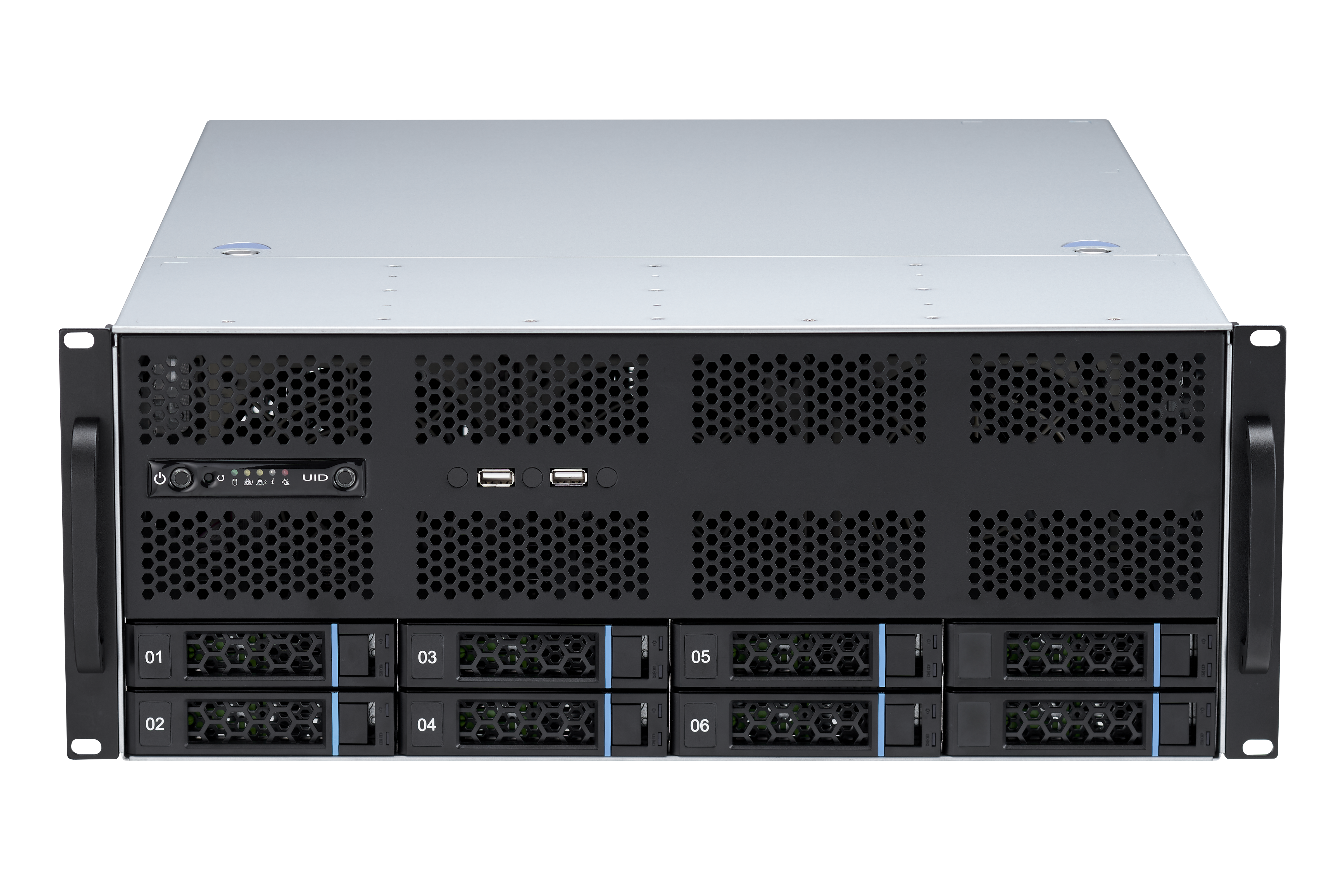

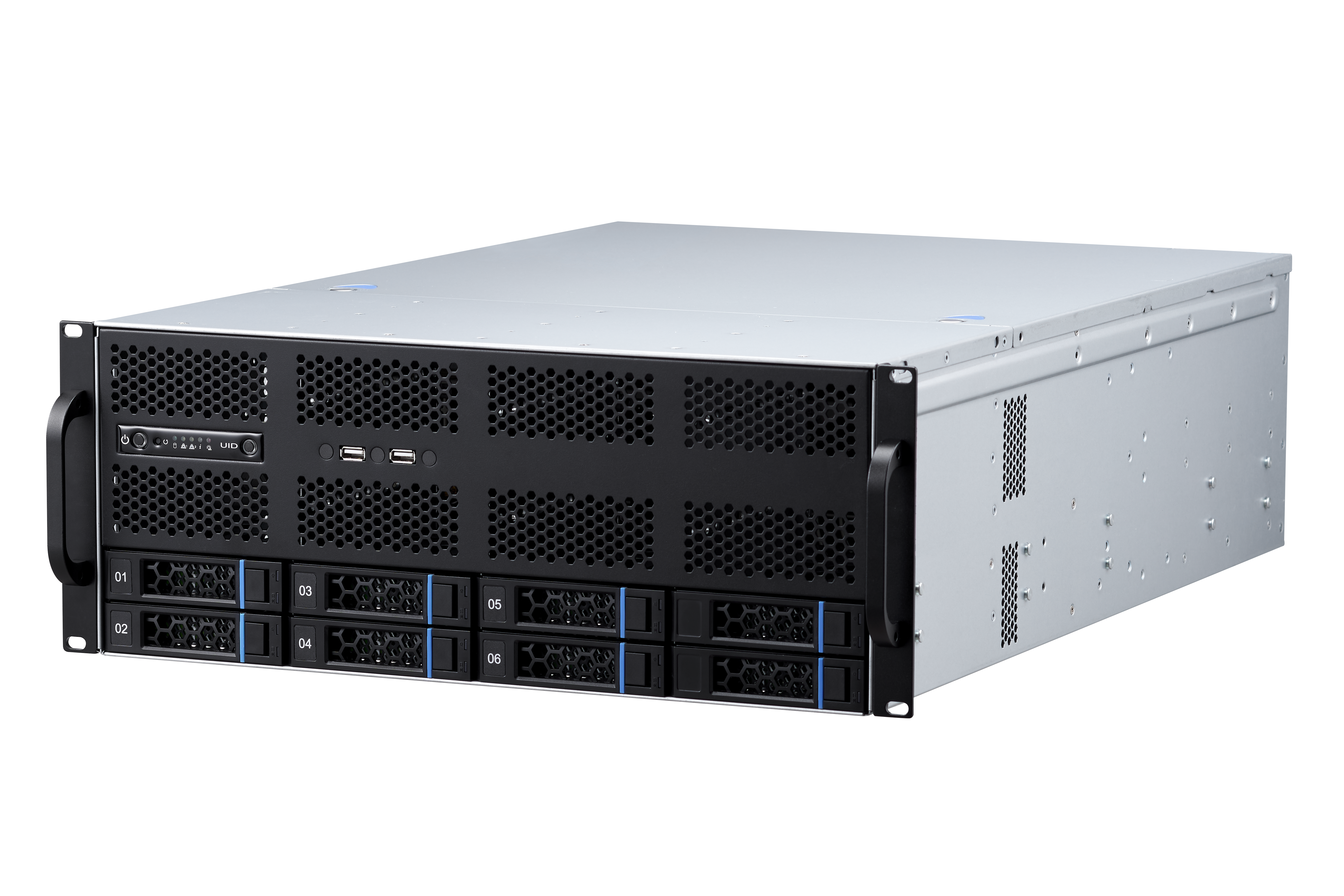

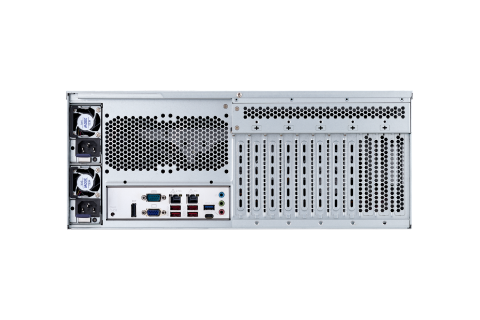

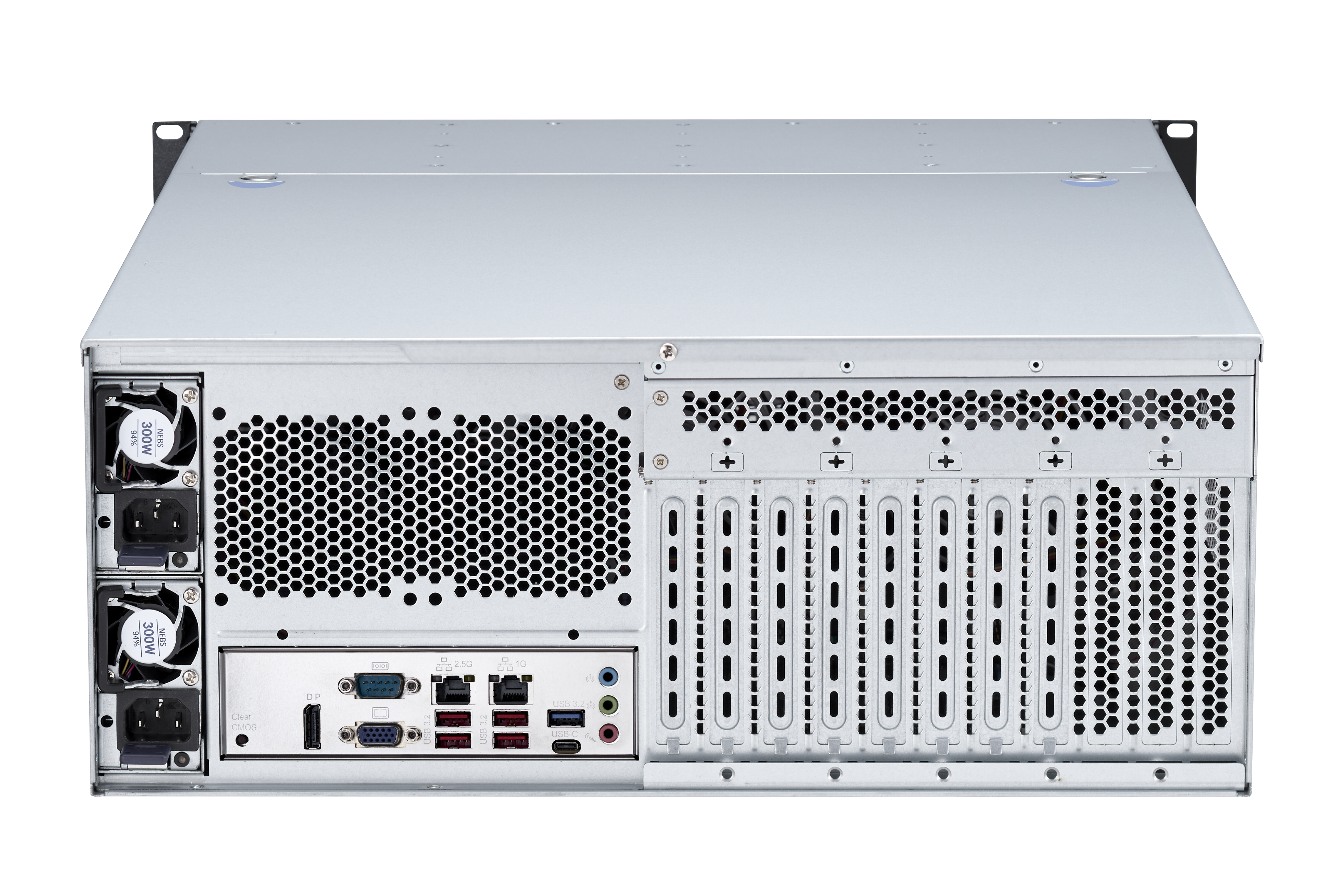

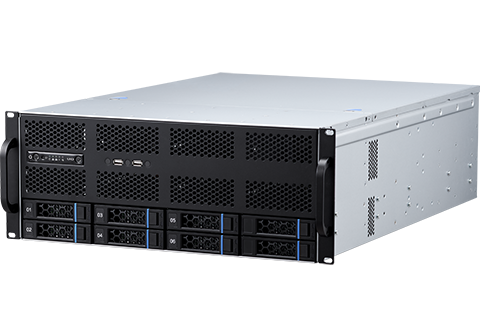

The ADLINK AXE-7440GW is a high-performance 4U AI GPU server powered by
workstation-class Intel® Xeon® 600 processors with up to 350W TDP.
Engineered for massive parallel processing, it features an 11-slot expansion design
supporting up to four double-width PCIe Gen5 x16 GPUs via an extension board, providing
the specialized computational power required for deploying large language models (LLMs)
and complex multimodal AI at the edge.
Key Value Propositions
- Extreme GPU Scalability: Accommodates up to 4x dual-slot Gen5 x16 GPUs to accelerate heavy-duty generative AI training and real-time inference.
- Flexible High-Density Storage: Equipped with 8x 2.5"/3.5" SATA HDD bays and dual M.2 NVMe slots for rapid data access and massive local storage capacity.
- Advanced Thermal Resilience: Features 3x hot-swappable internal fan modules with optional rear exhaust fans to ensure stable performance for high-TDP workstation-class processors.
*GPU capacity and PCIe lane configuration depend on the specific extension board and installed Intel® Xeon® CPU SKU.
| Processor Number |
Cores/ Threads |
Intel® Smart Cache LLC |
Base / Max Turbo Frequency |
PCIe Lanes |
Notes |
| Intel® Xeon® 698X |
86 / 172 |
336 |
2.0 / 4.6 |
128 |
Extreme high-end for massive virtualization or complex, multi-model workloads |
| Intel® Xeon® 696X |
64 / 128 |
336 |
2.4 / 4.6 |
128 |
High core density for data center-grade edge nodes |
| Intel® Xeon® 678X |
48 / 96 |
192 |
2.4 / 4.7 |
128 |
High-performance AI inference & heavy multitasking |
| Intel® Xeon® 656 |
20 / 40 |
72 |
2.9 / 4.6 |
128 |
Enough cores for automation |
| Intel® Xeon® 654 |
18 / 36 |
72 |
3.1 / 4.6 |
128 |
| Intel® Xeon® 636 |
12 / 24 |
48 |
3.5 / 4.5 |
80 |
Suitable for budget Edge Servers needing minimal high-end GPUs |
| Intel® Xeon® 634 |
12 / 24 |
48 |
2.7 / 4.4 |
80 |
*PCIe lane configuration depends on the installed Intel® Xeon® CPU SKU.
