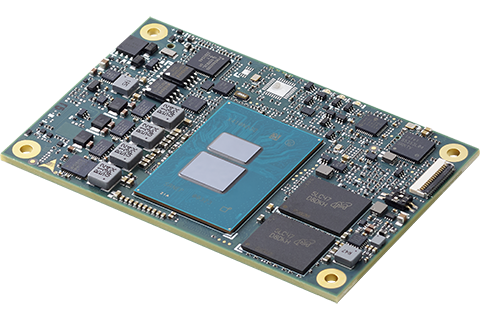

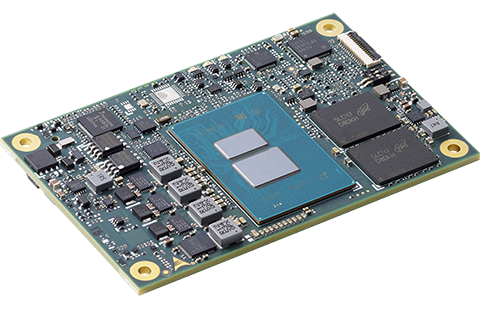

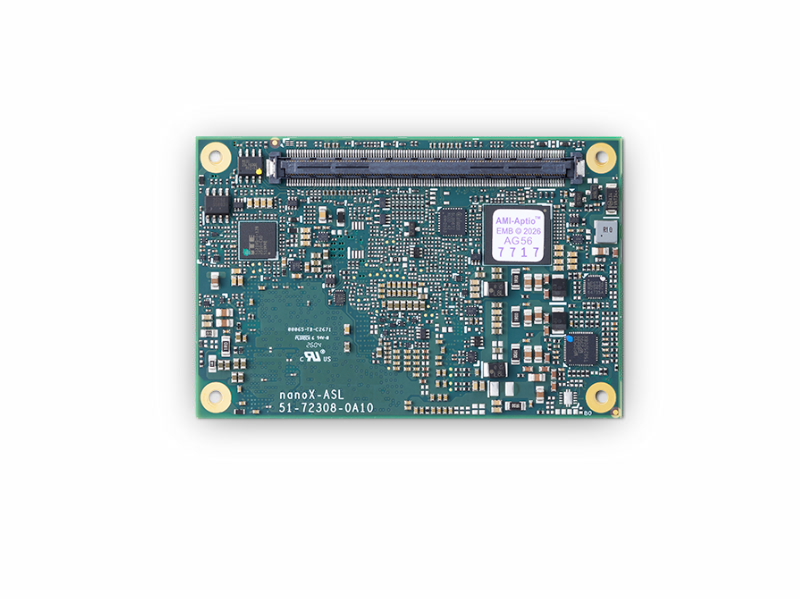

Rugged Reliability and Flexible Connectivity The ADLINK nanoX-ASL is a COM Express Mini Size Type 10 module designed to deliver robust AI computing power in a compact form factor. Powered by the Intel® Amston Lake platform—specifically the 7th Gen
Intel® Atom x7000RE series—this module offers up to 8 cores with turbo frequencies reaching 3.8 GHz. It supports up to 32 GB of on-board LPDDR5-4800 memory featuring in-band ECC (IBECC) for enhanced data integrity. Visual performance is equally impressive, with Intel® UHD Graphics capable of driving
up to three independent 4K @60 Hz displays , making it an ideal choice for high-resolution medical imaging, digital signage, or complex industrial interfaces.
Engineered for the most demanding environments, the nanoX-ASL is
available in Extreme Rugged versions that operate reliably in temperatures ranging from -40°C to 85°C . Its connectivity suite is built for real-time precision, featuring 2.5GbE with Intel® TSN/TCC to ensure deterministic control in industrial automation. The module provides flexible expansion through four PCIe Gen 3 lanes, dual USB 3.2 ports, and up to eight USB 2.0 ports. With integrated TPM 2.0 for hardware-based security and support for modern operating systems like Windows 11 IoT Enterprise LTSC and Ubuntu 24.04 LTS, the nanoX-ASL provides a future-proof foundation for next-generation edge deployments.
Specifications: -
Intel Atom® x7000RE Processor (Amston Lake) at 6-12W TDP
-
PICMG COM Express R3.1 compliant, Mini Size module (84mm x 55mm)
-
Up to 32GB LPDDR5 soldered-down memory support, up to 4800MHz, IBECC (selected SKUs)
-
Up to 128GB eMMC (optional)
-
DP, HDMI, DVI, LVDS, eDP (build option) support
-
2.5GbE Ethernet (TSN optional), USB 3.2, USB 2.0, SATA 3.0
-
Industrial temperature support: -40°C to +85°C (selected SKUs)
-
10 years product availability
