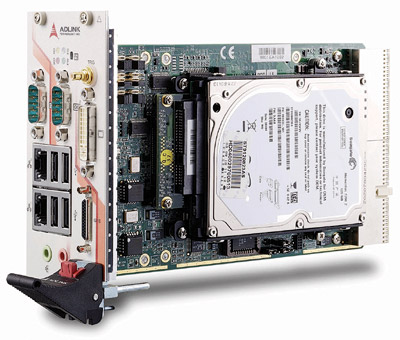

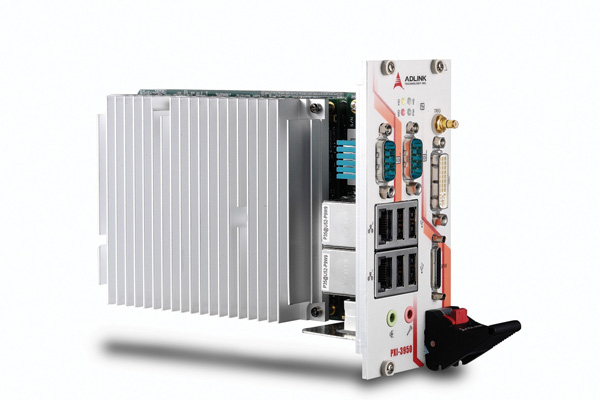

The ADLINK PXI-3950 is a new-generation PXI embedded controllers designed for hybrid PXI-based testing systems. Combining IntelR Core?2 Duo T7500 2.2 GHz processor, the latest GME965 chipset, and up to 4 GB of 667 MHz DDR2 memory, the PXI-3950 delivers ultimate performance for your test and measurement applications.
Hybrid PXI-based testing systems are typically composed of a PXI platform and stand-alone instruments. The PXI-3950 provides plenty of interfaces, including GPIB, USB and COM ports for connecting and controlling instruments. The PXI-3950 also has dual Gigabit Ethernet ports, one port for a LAN connection and the other port for connecting next-generation LXI instruments.
The PXI-3950 provides two computing engines on a single processor that can execute two independent tasks simutaneously in a multi-tasking environment. Combining this superior performance with a variety of instrument platforms makes the PXI-3950 an ideal solution for your hybrid PXI-based system may be required.
