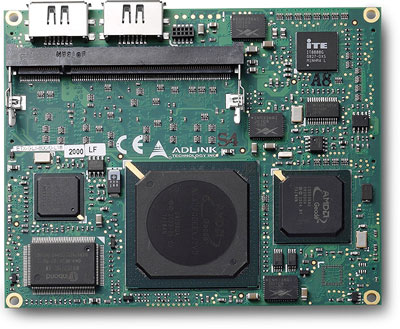

The ETX-GLX, based on AMD's Geode? LX 800 processor and CS5536 companion chipset, constitutes the perfect balance between computing performance and low power consumption. It supports up to 1 GB DDR400 in a single SODIMM socket or optionally can be equipped with 128 MB or 256 MB DDR400 memory soldered on the module. The module supports advanced display features such as high resolution analog VGA support up to 1920 x 1440 and single/dual channel 24-bit LVDS up to 1600 x 1200 resolution. The board can optionally support Standard Definition and High Definition TV output, from standard NTSC/PAL, through 480p, 720p to 1080i. The module incorporates an Intel based 10/100Base-T Ethernet port, a PATA EIDE controller supporting both PIO and UDMA modes, a dual port SATA controller, 4 USB 2.0 ports, two serial ports, one parallel port (SPP/ECP/EPP) shared with FDD, PS/2 keyboard/mouse, AC'97 audio and power management functionality.
