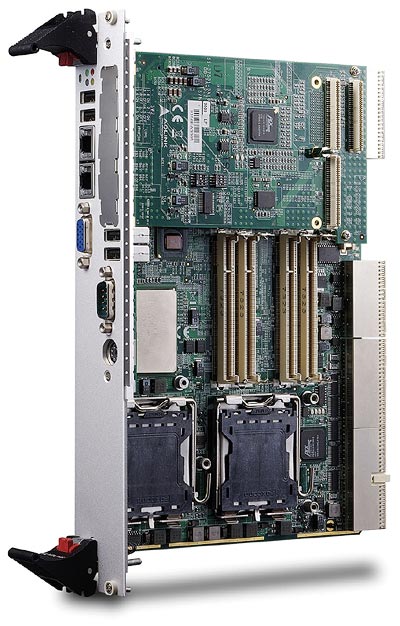

The cPCI-6920 Series is a 6U CompactPCI single board computer in single slot (4HP) or dual slot (8HP) width form factor featuring server class chipset and low voltage Quad-Core/Dual-Core Intel® Xeon® processor(s) with high-performance 1066MHz front-side bus (FSB). The single slot version provides one CPU socket which can be equipped with one Quad-Core Intel Xeon (L5408) or one Dual-Core Intel Xeon (LV 5138) processor, and provides two SO-RDIMM sockets for up to 8GB memory capacity. The dual slot version provides two CPU sockets which can be equipped with two Quad-Core Intel Xeon (L5408) or two Dual-Core Intel Xeon (LV 5138) processors, and provides four SO-RDIMM sockets for up to 16GB memory capacity. The cPCI-6920 Series implements the server class Intel® 5100 Memory Controller Hub and ICH9R I/O Hub for optimal performance.
The cPCI-6920 Series supports a 64bit/66MHz CompactPCI bus, one PMC site with 64-bit/66MHz PCI bus or PCI-Express x8 XMC, four PCI-Express® Gigabit Ethernet ports (two on front panel, two for PICMG 2.16), a CompactFlash socket and onboard 4GB USB NAND flash for solid-state storage, optional onboard 2.5" SATA HDD, and SCSI RAID 1 support via the Rear Transition Module (RTM). For flexibility of use, the cPCI-6920 Series can be installed in a standard CompactPCI system slot as system master, or peripheral slot as stand-alone server blade without CompactPCI bus communication. The cPCI-6920 Series is ideally suited for datacom, telecom and military applications.
