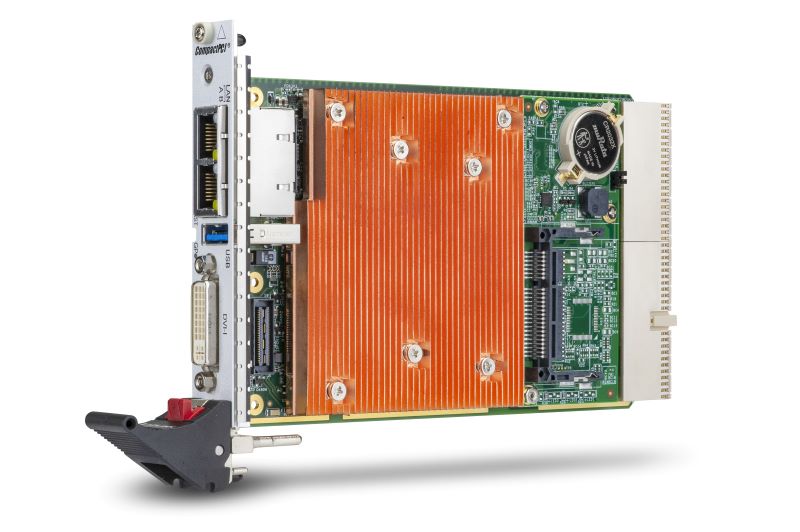

The ADLINK cPCI-3520 Series is a 3U CompactPCI® processor blade with soldered DDR4-2666 ECC memory of up to 32GB. The ADLINK cPCI-3520 features the Intel® Xeon® E, 8th/9th Gen Intel® Core™ and Intel® Celeron® G processor (formerly Coffee Lake-H) with Mobile Intel® CM246 Chipset. (Supports ECC memory dependent on processor).

The cPCI-3520 Series is a 3U CompactPCI blade available in single-slot (4HP), dual-slot (8HP) or triple-slot (12HP) width form factors with various daughter boards to provide a broad range of I/O requirements. Faceplate I/O in the single-slot (4HP) version includes 1x DVI-I, 2x GbE and 1x USB 3.0 port (these I/O are common to all versions). Faceplate I/O in the dual-slot (8HP) version includes additional 2x USB 2.0, 1x COM, 1x KB/MS and Line-in/Line-out on the cPCI-3520D or additional 2x DisplayPorts, 1x COM in RJ-45 connector, 1x KB/MS and 1x additional USB 2.0 port on the cPCI-3520G. Two more dual-slot options are the cPCI-3520L with additional 2x GbE, 1x COM and 2x USB and the cPCI-3520M with one 100-pin high density connector supporting additional 2x DVI-D, 2x USB 2.0, 2x COM, 2x KB/MS and Line-in/Line-out ports.

Graphics support is integrated on the CPU and allows 3 independent displays on the faceplate by selecting the cPCI-3520G with additional 2x DisplayPorts. Storage includes a CFast slot, mSATA socket or a 32GB onboard SSD and 2.5" SATA drive on the layer 2 daughter board (cPCI-3520D/L/M/P). One optional PCI 32-bit/66MHz PMC site or PCIe x1 XMC site is available on the 8HP or 12HP versions (cPCI-3520S or cPCI-3520P).

Rear I/O signals to J2 include 4x PCIe x1, 3x SATA 3 Gb/s, and 3x USB 2.0. 3x GPIO and SMBus signals are also routed to the J2 connector. The optional Rear Transition Module (RTM) provides 3x SATA, 2x GbE, 2x USB, 1x COM (Tx/Rx), and 1x VGA port.

The cPCI-3520 is a high performance solution for factory automation and other industrial applications that require superior data transfer capability and advanced computing power. The ADLINK cPCI-3520 provides high manageability, supports Satellite mode operation as a standalone blade in peripheral slots, and IPMI for Preliminary 2 Introduction system health monitoring. A GbE port on the faceplate supports Intel® AMT 9.0 for remote monitoring.

• cPCI-3520/2776/M16/S128
  1-slot (4HP) 3U CompactPCI blade with Intel® Xeon® E-2276ML processor, 16GB DDR4-2666 ECC soldered memory, DVI, 2x GbE, 1x USB 3.0 and onboard 128GB SSD
• cPCI-3520/9850HL/M16/S32
  1-slot (4HP) 3U CompactPCI blade with Intel® Core™ i7-9850HL processor, 16GB DDR4-2666 soldered memory, DVI, 2x GbE, 1x USB 3.0 and onboard 32GB SSD
• cPCI-3520D/9850HL/M16
  2-slot (8HP) 3U CompactPCI blade with Intel® Core™ i7-9850HL processor, 16GB DDR4-2666 soldered memory, DVI, 2x GbE, 1x USB 3.0, COM, 2x USB 2.0, PS/2 KB/MS, Line-in, Line-out, CFast socket and SATA connector
• cPCI-3520G/9850HL/M16
  2-slot (8HP) 3U CompactPCI blade with Intel® Core™ i7-9850HL processor, 16GB DDR4-2666 soldered memory, DVI, 2x GbE, 1x USB 3.0, RJ-45 COM, 2x DisplayPort, PS/2 KB/MS, 1x USB 2.0, CFast socket and SATA connector
• cPCI-3520T/9850HL/M16 (available by request)
  2-slot (8HP) 3U CompadctPCI blade with Intel® Core™ i7-9850HL processor, 16GB DDR4-2666 soldered memory, DVI, 2x GbE, 1x USB 3.0, 2x GbE in RJ-45 and 2x GbE in MIL-STD M12 connectors, COM (RS-232/422/485), CFast socket and SATA space
• cPCI-3520L/9850HL/M16
  2-slot (8HP) 3U CompactPCI blade with Intel® Core™ i7-9850HL processor, 16GB DDR4-2666 soldered memory, DVI, 4x GbE, 1x USB 3.0, 2x USB 2.0, CFast socket and SATA space
• cPCI-3520M/9850HL/M16 (available by request)
  2-slot (8HP) 3U CompactPCI blade with Intel® Core™ i7-9850HL processor, 16GB DDR4-2666 soldered memory, 3x DVI, 2x GbE, 1x USB 3.0, 2x USB 2.0, 2x COM, PS/2 KB/MS, Line-in, Lineout, CFast socket and SATA connector
• cPCI-3520S/9850HL/M16
  2-slot (8HP) 3U CompactPCI blade with Intel® Core™ i7-9850HL processor, 16GB DDR4-2666 soldered memory, DVI, 2x GbE, 1x USB 3.0, CFast socket and PMC/XMC connector
• cPCI-3520P/9850HL/M16 (available by request)
  3-slot (12HP) 3U CompactPCI blade with Intel® Core™ i7-9850HL processor, 16GB DDR4-2666 soldered memory, DVI, 2x GbE, 1x USB 3.0, COM, 2x USB 2.0, PS/2 KB/MS, Line-in, Lineout, CFast socket, SATA connector and PMC/XMC connector

• SATA drive installation kit
  2.5” SATA drive installation package including bracket, screws
• Y-cable for keyboard & mouse
  Y-cable for keyboard & mouse and 200mm in cable length
• DisplayPort to DVI cable
  DisplayPort to DVI adapter cable with 150mm cable (one is included in cPCI-3520G package by default)
• DisplayPort to VGA cable
  DisplayPort to VGA adapter cable with 150mm cable
• DisplayPort to HDMI cable
  DisplayPort to HDMI adapter cable with 150mm cable
• RJ-45 to DB9 cable
  (cPCI-3520G only) RJ-45 to DB9 COM adapter and 200mm in cable length
• SCSI 100p to IO cable
  (cPCI-3520M only and available by request) SCSI 100-pin male to 2 x DVI-D female, 2 x DB9 male, 2 x USB female, 2 x PS/2 female, 2 x audio jack, 150 mm cable Contact us for different CPU, memory, SSD/HDD, CFast and mSATA combinations.

• cPCI-R3P00
  8 HP Rear I/O module with 2x GbE, 2x COM, 2x USB 2.0, 3x SATA connectors, VGA, 50mm depth
• cPCI-R3P00T
  8 HP Rear I/O module with 2x GbE, 2x COM, 2x USB 2.0, 3x SATA connectors, VGA, 80mm depth
