PC/104 系统单板电脑

凌华科技PC/104产品提供了无与伦比的无风扇操作性能，具有可承受极端温度，抗冲击和振动，防护涂层，嵌入式BIOS以及长产品生命周期等优势。PC/104产品是可堆叠的单板电脑，遵循PC/104的尺寸（90 x 96 mm），非常适合构建坚固耐用且紧凑的嵌入式系统，作为一种军用宽温级的解决方案，可以适应多种严苛环境下的应用。PC/104产品提供了无与伦比的无风扇操作性能，具有可承受极端温度，抗冲击和振动，防护涂层，嵌入式BIOS以及长产品生命周期等优势。PC/104是一组嵌入式计算标准，定义了物理规格和计算总线。PC/104的概念最初由Ampro公司在1987年提出，并在1992年由PC/104联盟进行标准化。PC/104的名字即来源于SA（PC/AT）总线和连接器上的104个针脚。

PC/104-Plus规范针对在嵌入式应用中使用高速PCI总线制定了标准。将PCI总线并入行业已认可的PC/104规格中，为用户带来了诸多受益，包括通过PCI总线进行快速地数据传输，由于PC/104独特的自堆栈总线而带来的成本下降，以及因PC/104坚固耐用而具备的可靠性。

PC/104联盟为了支持高性能的PCI Express接口又建立了PCI/104 Express规范，同时仍然保持与现有PC/104基础架构的兼容性。
PCI/104Express保留了PC/104的关键属性，如紧凑的尺寸（90 x 96 mm），可堆叠和兼容PC技术。PCIe/104是没有PCI总线的PCI/104 Express。

PCI/104-Express 单板电脑

CMx-SLx

PCI/104-Express Type 1 单板电脑，支持第六代Intel® Core™ 处理器 (原开发代号：Skylake)

DATA SHEET

PCI-104

CM3-BT4

Extreme Rugged™ PC/104-Plus, PCI-104 Single Board Computer with Intel® Atom™ Processor System-on-Chip

DATA SHEET

CM3-BT1

军用宽温级 PCI-104 单板电脑，支持 Intel® Atom™ E3800 系列 SoC 处理器

DATA SHEET

PC/104-Plus

CM2-BT2

军用宽温级 PC/104-Plus 单板电脑，支持 Intel^® Atom™ SoC 处理器

DATA SHEET

PC/104

CM1-BT1

军用宽温级 PC/104 单板电脑，支持 Intel® Atom™ SoC 处理器

DATA SHEET

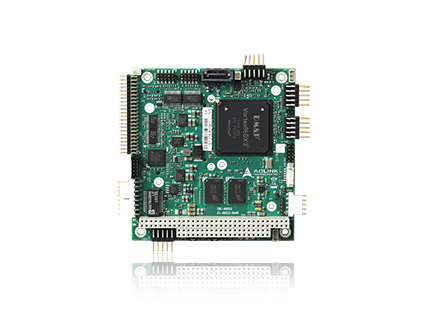

CM1-86DX3

PC/104 Single Board Computer with Vortex86DX3 System-on-Chip

DATA SHEET

Technical Article

Stackable PC/104 Set to Raise the Game in Industrial System Design
An excellent implementation of powerful processing and high-speed I/O in a PC/104 module is the ADLINK CMx-SLx PCI/104-Express Type 1 single board computer, based on the 64-bit 6th-generation Intel® Core™ i3 processor (formerly “Skylake H”). The CMx-SLx is specifically designed for customers who need high-level processing and graphics performance in a long product life solution and leverages Intel® HD Graphics and DDR4 memory for optimum graphics and I/O performance for today’s video-intensive data traffic applications.

Application Story

PC/104 Single Board Computer for High-reliability and Quality Infant Ventilation System
Based on ADLINK PC/104 single board computer (SBC), it is designed for premature newborns, infants or children weighing up to 20kg. Aside from providing pressure-controlled, volume controlled-targeted ventilation, the infant ventilation system can also serve as a time-cycled, pressure-limited ventilator or an HFO ventilator.

Download this application story between Hitex (UK) and ADLINK to learn how PC/104 single board computer continuously become the architecture of new generation infant ventilation system from SLE.

PC/104 SBC Extreme Rugged Versions

6th Gen Intel Core (codename: Skylake)
	CMx-SLx, Core i3-6102E CMx-SLx, Xeon E3-1505L
Intel Atom E3800 series (codename: Baytrail)
	CMx-BTx, Atom E3825

资料下载

Application Story

Application Story: PC104 Single Board Computer for High-reliability and Quality Infant Ventilation System
Brochure

ADLINK PC104 SBC - Optimized Versatility
Technical Article

Technical Article: Rugged development requires integration of design and test from start to finish
Technical Article

Technical Article: Stackable PC104 in Industrial System Design
