COM Express Type 6 - 紧凑型

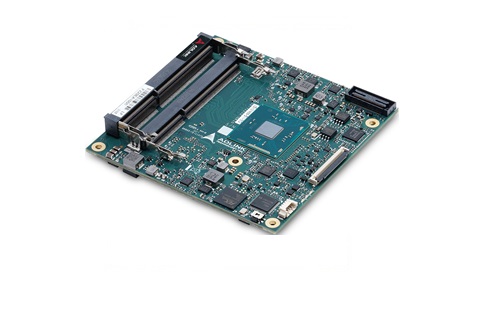

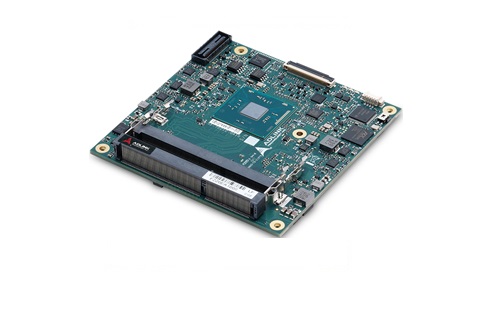

cExpress-BW

紧凑型 COM Express® Type 6 计算模块，支持 Intel Atom x5 E8000, Pentium N3710 and Celeron N3160/N3060/N3010 处理器

询价

主要特点

Intel Atom x5 E8000, Pentium N3710 and Celeron N3160/N3060/N3010 Series System-on-Chip (codename: Braswell)
Up to 8 GB dual channel DDR3L at 1600 MHz
3x DDI, 1x eDP (optional LVDS in place of eDP), and suppoorting 3 independent displays
GbE, three PCIe x1 (opt. five PCIe x1 with bridge)
2x SATA 6Gb/s (SATA0, SATA1)
4x USB 3.0/2.0 and 4x USB 2.0

更多信息

Ordering Information

cExpress-BW-N3710

COM Express Compact size Type 6 module with IntelR PentiumR N3710 at 1.6/2.56 (Burst) GHz
cExpress-BW-N3160

COM Express Compact size Type 6 module with IntelR CeleronR N3160 at 1.6/2.24 (Burst) GHz
cExpress-BW-N3060

COM Express Compact size Type 6 module with IntelR CeleronR N3060 at 1.6/2.48 (Burst) GHz
cExpress-BW-N3010

COM Express Compact size Type 6 module with IntelR CeleronR N3010 at 1.04/2.24 (Burst) GHz
cExpress-BW-x5-E8000

COM Express Compact size Type 6 module with IntelR Atom? x5-E8000 at 1.04/2.0 (Burst) GHz
