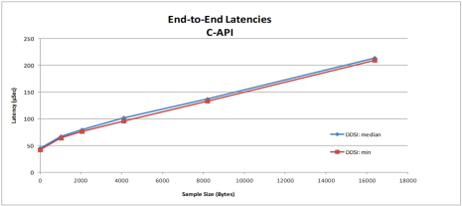

Both the average and minimum latency values for each different payload size were measured. The curves shows excellent latency can be achieved even when the payload size is significant. For payloads up to 2Kbytes then the latency was less than 100 micro seconds.
The test was also repeated using Vortex OpenSplice's proprietary RTNetworkingService, with very similar results.

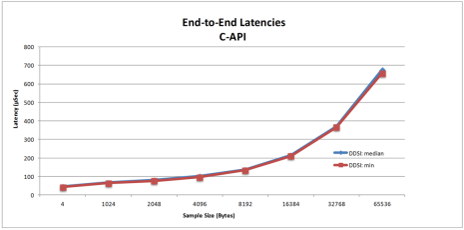

On a zoomed in scale you can see that the difference between the median and minimum values across the range of data points is very low demonstrating that data delivery times are very predictable, making Vortex OpenSplice suitable for use in systems requiring high levels of determinism.
