Application: Barcode, OCV/OCR and Defect Inspection
Success in the food and beverage industry relies on productivity and quality, and machine vision plays an increasingly important role in increasing productivity and quality assurance.

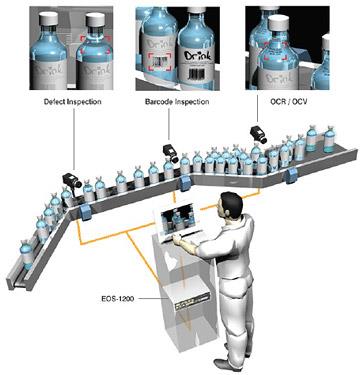

Manufacturing processes utilizing machine vision technology such as 2D code readers, label inspection, OCV (optical character verification), and pattern matching are significantly advantageous, improving production yield and automatic identification and resolution of manufacturing problems on the line. Simultaneous multi-camera execution of these tasks delivers a cost-effective solution, reducing total cost of ownership. As environments grow, effective production and quality control management benefit considerably from ready-to-deploy systems providing quick and worry-free inspection access to all areas, and efficient synchronization of the multi-camera array.
ADLINK Solution: EOS-1200: Powerful 4-CH Gigabit PoE Embedded Vision System with 2nd/3rd Generation Intel® Core™ i5/i7 Processor
ADLINK's EOS-1200 is a powerful Gigabit PoE embedded vision system implementing 2nd/3rd generation Intel® Core™ i5/i7 quad core processing, providing four independent Gigabit PoE (power over Ethernet) ports to deliver both data and power over a single Ethernet cable. All applications benefit significantly with reduced costs and maintenance requirements and simpler installation.
ADLINK Solution: EOS-4000: Powerful 2-CH Camera Link (PoCL) Embedded Vision System with 3rd Generation Intel® Core™ i5/i7 Processor
The EOS-4000 is a high performance, Camera Link embedded vision system, streaming raw image data over dedicated point-to-point link topology, with no network latency or protocol overhead, and implementing direct memory access (DMA) solutions and rearranging data for efficiency. Transmission of image data from cameras to the system memory is executed without utilizing any CPU resources, and the EOS-4000 supports 64-bit memory addressing, encoder input, and RAID technology (dual SATA interface), benefiting vision applications with large address space, such as defect inspection and line scan.
The EOS-4000 additionally offers 64 optocoupler isolated digital I/Os, and supports software configurable digital filter function (0.25 µs-131 ms) securing recognition of input signals carrying noise or chatter, ideally suiting demanding industrial environments.
