Application

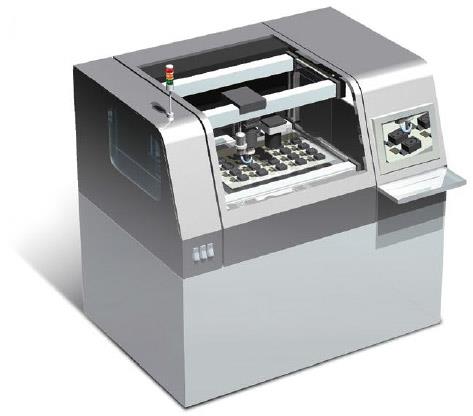

Compact Camera Module Dispenser

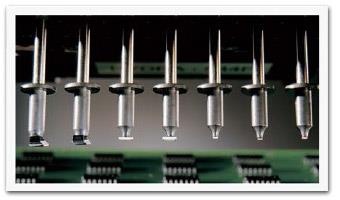

Most smart phones, tablets, and notebooks carry a compact camera module (CCM). From component stage to completion considerable assembly is required, among which focus and dispensing are final processes. In focus process, focal length of the CCM is adjusted to a specific value. Motion controllers can be used to rotate the focusing ring and torque sensor to provide necessary detection of focus status. Subsequently, the final process is dispensing. For this type of microminiaturized device, automated dispensing requires precise positioning and synchronization capability of a motion controller. ADLINK provides an integrated solution with its PCI-9112 and PCI-8154/8158, to guarantee success in these operations.
ADLINK Solution: PCI-8154/8158: Advanced 4/8-Axis Servo & Stepper Motion Controllers with Modular Design
ADLINK provide total solutions, with not only DAQ cards (PCI-9112) to acquire torque sensor data, but also motion cards (PCI-8154/8158) to control the entire system. The PCI-8154/8158 advanced pulse train motion controllers can generate high frequency pulses to drive stepper or servo motors up to 6.55MHz. A 4/8 axes controller, it provides simultaneous motion, such that all axes in waiting synchronous mode will start at the same time.
|
Advantages & Features
|
Customer Benefits
|
