PC/104 Single Board Computers

ADLINK products include the most rugged offerings in the industry, Single Board Computers (SBC) in popular compact form factors for embedded applications, and rugged systems with field-proven reliability, durability, and performance. PC/104 family products provide unmatched fanless operation over temperature extremes, resistance to shock and vibration, conformal coating, embedded BIOS, and a long product life reputation. The products continue to distinguish itself as an Extreme Rugged product for a multitude of applications. Mini-ITX embedded boards support the latest processors to deliver a high performance and space-saving platform for a wide array of embedded computing applications.

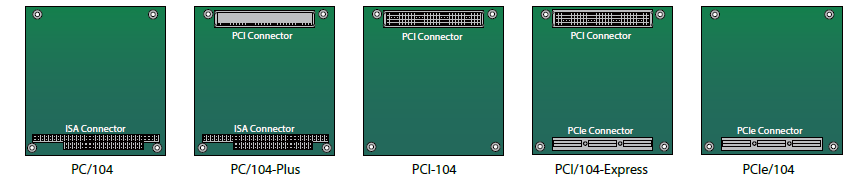

The PC/104-Plus specification establishes a standard for the use of a high speed PCI bus in embedded applications. Incorporating the PCI bus within the industry proven PC/104 form-factor brings many advantages to its users, including fast data transfer over a PCI bus, low cost due to PC/104’s unique self-stacking bus, and high reliability due to PC/104’s inherent ruggedness. The PC/104 Consortium has established the PCI/104 Express a high speed PCI bus in embedded applications. Incorporating the PCI bus within the industry proven PC/104 form-factor brings many advantages to its users, including fast data transfer over a PCI bus, low cost due to PC/104’s unique self-stacking bus, and high reliability due to PC/104’s inherent ruggednes.

PCIe/104

CM5-P1000 Preliminary

PCIe/104 Type 1 Embedded Graphics Module with NVIDIA® Quadro® P1000

DATA SHEET

PCI/104-Express

CMx-SLx

PCI/104-Express Type 1 Single Board Computer with 6th Gen. Intel® Core™ Processor (formerly codenamed Skylake)

DATA SHEET

PCI-104

CM3-BT4

Extreme Rugged PC/104-Plus, PCI-104 Single Board Computer with Intel® Atom™ Processor System-on-Chip

DATA SHEET

CM3-BT1

Extreme Rugged PCI-104 Single Board Computer with Intel® Atom™ Processor E3800 Series SOC

DATA SHEET

PC/104-Plus

CM2-BT2

Extreme Rugged PC/104-Plus Single Board Computer with Intel® Atom™ Processor System-on-Chip

DATA SHEET

PC/104

CM1-BT1

Extreme Rugged PC/104 Single Board Computer with Intel® Atom™ Processor System-on-Chip

DATA SHEET

CM1-86DX3

PC/104 Single Board Computer with Vortex86DX3 System-on-Chip

DATA SHEET

Technical Article

Stackable PC/104 Set to Raise the Game in Industrial System Design
An excellent implementation of powerful processing and high-speed I/O in a PC/104 module is the ADLINK CMx-SLx PCI/104-Express Type 1 single board computer, based on the 64-bit 6th-generation Intel® Core™ i3 processor (formerly “Skylake H”). The CMx-SLx is specifically designed for customers who need high-level processing and graphics performance in a long product life solution and leverages Intel® HD Graphics and DDR4 memory for optimum graphics and I/O performance for today’s video-intensive data traffic applications.

Application Story

PC/104 Single Board Computer for High-reliability and Quality Infant Ventilation System
Based on ADLINK PC/104 single board computer (SBC), it is designed for premature newborns, infants or children weighing up to 20kg. Aside from providing pressure-controlled, volume controlled-targeted ventilation, the infant ventilation system can also serve as a time-cycled, pressure-limited ventilator or an HFO ventilator.

Download this application story between Hitex (UK) and ADLINK to learn how PC/104 single board computer continuously become the architecture of new generation infant ventilation system from SLE.

PC/104 SBC Extreme Rugged Versions

6th Gen Intel Core (codename: Skylake)
	CMx-SLx, Core i3-6102E CMx-SLx, Xeon E3-1505L
Intel Atom E3800 series (codename: Baytrail)
	CMx-BTx, Atom E3825

Publication Downloads

Brochure

ADLINK PC/104 SBC - Optimized Versatility
Application Story

Application Story: PC/104 Single Board Computer for High-reliability and Quality Infant Ventilation System
Technical Article

Technical Article: Rugged development requires integration of design and test from start to finish
Technical Article

Technical Article: Stackable PC/104 in Industrial System Design
